Versatile Automatic Thermoforming Machine for PS Foam and Fast Food Products

Product Description

Introducing our high-performance Plastic Thermoforming Machine, specifically engineered to produce durable, high-quality lunch boxes with precision and efficiency.
I. Machine Features
This state-of-the-art machinery, the result of two decades of dedicated research by experts at Hangzhou Holin Plastic Machinery Co., Ltd., boasts the following exceptional features:
1. Remarkable Speed: Achieve molding speeds of up to 30 molds/min and blanking speeds of 120 molds/min, ensuring a swift production process.
2. Extensive Molding Area: Engineered for high-speed molding and blanking of wide sheets, this machine accommodates widths of 44 inches, 48 inches, 52 inches, 54 inches, and 60 inches, thanks to the innovative technology of Holin Plastic Machinery Co., Ltd.
3. Energy Efficiency: Our patented advanced technology allows this machine to consume only half the power compared to conventional machines, significantly reducing operational costs.
4. Superior Product Quality: With substantial mould clamping force, this machine supports air pressure (positive pressure), compression, or comprehensive molding to ensure top-notch product quality.
5. Labor Efficiency: High automation levels reduce labor requirements; the entire production line can be managed by just one operator (excluding packing personnel).
6. Intelligent Data Storage: Capable of storing various production data, this machine allows for quick setup after mold changes by simply inputting the mold number to resume production.
7. Remote Diagnosis Capability: This advanced machine unit offers remote fault diagnosis, ensuring minimal downtime and continuous operation.
II. Technical Parameters

Station one: Thermoforming machine part
Model/Parameters	Unit	HLRCH-760/1010	HLRCH-1060/1300	HLRCH-1100/1300	HLRCH-1300/1300	HLRCH-1300/1420
Max. forming area	mm2	762x 1016	1065X1295	1120X1295	1270X1295	1270X1420
Max.forming depth	mm	127	127	127	127	127
Mold clamp force	t	40	60	60	60	60
Max. forming speed	s/mold	1.8	2	2	2	2
Oven length	mm	3000	5300	5300	5300	5600
Total power	kw	110	315	330	365	400
weight	t	7	10	11	14	16
Install(LxWxH)	m	10x2x2.5	14x2.2x2.5	14x2.2x2.5	14x2.35x2.5	15x2.35x2.5

Station two: In line cutting machine part
Model/Parameters	Unit	HLZCZ-760	HLZCZ-1060	HLZCZ-1100	HLZCZ-1300
Max. cutting area	mm2	762x400	1065X400	1120X400	1270X500
Max.cutting depth	mm	150	150	150	150
Max. cutting force	t	20	35	35	35
Max. cutting speed	cycle/min	160	160	160	160
Total power	mm	3000	5300	5300	5300
Total power	kw	15	22	22	25
weight	t	6	8	8	9
Install(LxWxH)	m	5x3.7x3.5	5x4x3.5	5x4.5x3.5	5x4.5x3.5

Note:
1. We offer machine customization tailored to your specific requirements upon request.
2. Technical parameters and requirements will be detailed in the contract.
III. After Sales Service
1. Comprehensive Installation and Commissioning: We provide expert installation and commissioning services at your factory.
2. Warranty: Enjoy peace of mind with our 1-year warranty.
3. Long-term Technical Support: We offer ongoing technical support to ensure seamless operation.
4. Lifetime Maintenance: Our commitment extends to providing lifetime maintenance for your equipment.

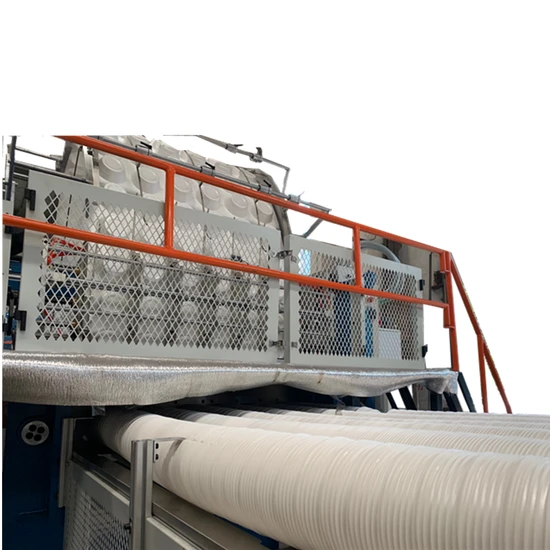

IV. Photos

---
