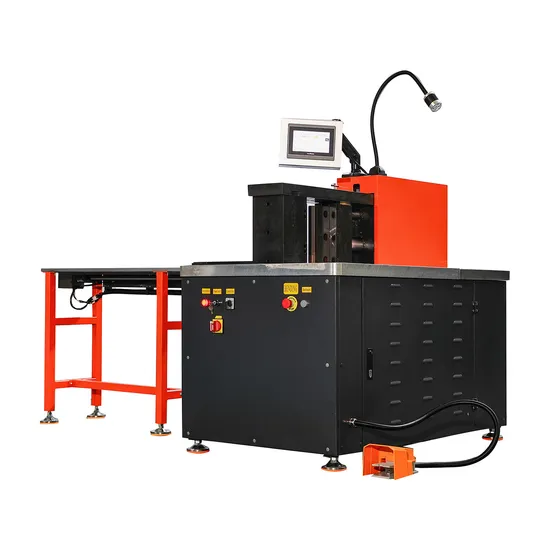

Multifunction Busbar Processing Machine E-Bender

Product Description

Advantages
1.The shearing unit adopts overall structure, its design is new and unique, proper stress, which
guarantees long time usage without deformation.
2.The Bend Unit adopts overall structure,angular CNC method, operation is simple and highly accurate.
3.The machine adopts dual layer platforms design scheme,three units can be operated at the same
time.
4.The machine is equipped with auto refueling and draining system.
5.The machine adopts stainless steel oil tank,so no corrosive degeneration of the hydraulic oil and extension the usage life span of hydraulic oil and each sealing parts.
6. PLC control,stable and reliable. Configuration

Work Bench Dimension (mm)	Machine Weight (Kg)	Number of Motors	Total Motors Power(KW)	Work Voltage (V)	Nmumber of Hydraulic Units (Mpa)	Control Mode
Layer1:1500×1500	1800	3+1	11.37	380	3×31.5	PLC+CNC angle bending
Layer2:840×370

Specification

Description	Material	Machining W×H(mm)	Max Punched Hole(mm)	Max Output Force(KN)
Punching Unit	Copper/Aluminum	16×260	ø32	600
Shearing Unit	Copper/Aluminum	Simple shearing:16×260 Punching and shearing:16×260		600
Bending Unit	Copper/Aluminum	Level bending:15×160 Vertical bending:12×120		350

---
