US$300.00-800.00
|
1 Piece
(MOQ)
|
Basic Info.
Environment Temperature
0ºC~45ºC
Relative Humidity
≤85% Rh
Output Voltage Level
500V, 1000V, 2000V, 2500V
Measurement Range
0~19990mΩ
Resolution
0.01mΩ 0.1mΩ1.0mΩ 10.0mΩ
Relative Error
0~2000mΩ≤±5%±2D
Transport Package
Wooden Box with Wrapping Film
Specification
ISO9001, ISO14001, OHSAS18001
Trademark
United Electrical
Product Description
Product Description:

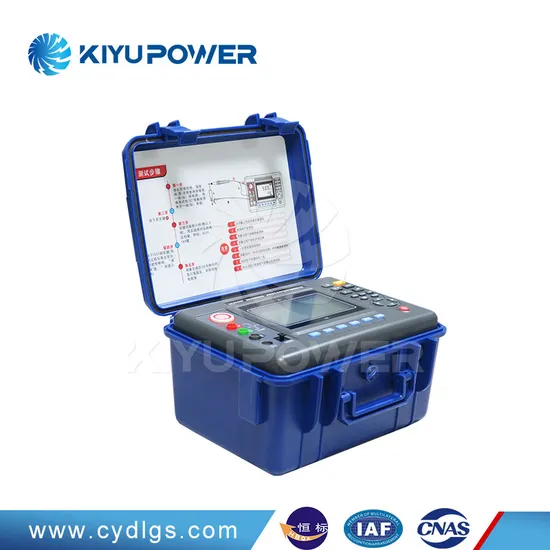

CYJY-624 Digital mega ohm meter is composed of medium and large scale integrated circuits. Large output power, high short circuit current, many output voltage level(there are four voltage levels).
Product Features:
1.Large output power, strong load capacity and anti-interference ability. Use proportion method to measure the low resistance, so the voltage drop does not affect the test accuracy.
2.Battery powered, automatically convert the measurement range.
3.Output short circuit current can be measured directly, no need to estimate on load measurement.
Product Parameters:
| Using Condition | Environment Temperature | 0ºC~45ºC |
| Relative Humidity | ≤85% RH |
Output Voltage Level Measurement Range Resolution Error | Output Voltage Level | 500V, 1000V, 2000V, 2500V |
| Measurement Range | 0~19990MΩ |
| Resolution | 0.01MΩ, 0.1MΩ, 1.0MΩ, 10.0MΩ |
| Relative Error | 0~2000MΩ≤±5%±2d |
| 2000MΩ~19990MΩ≤10%±2d |
Company Profile
Kiyu Power is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
>>
