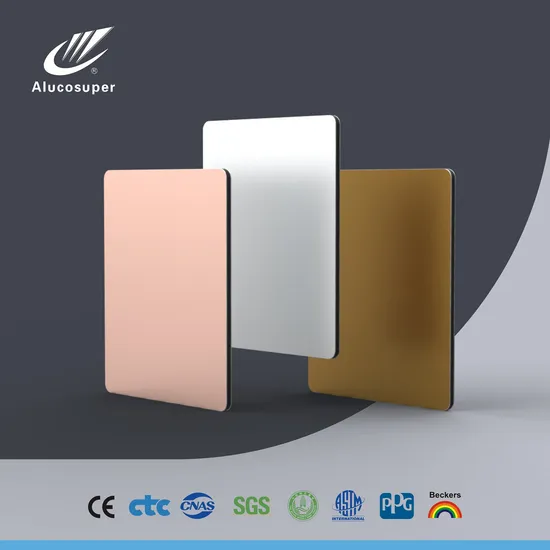

Coating External Wall Sscm Aluminum Panel ACP Aluminum Composite Panel with Factory Price

Product Description

Product Parameters

ALUMINUM COMPOSITE MATERIAL
Thickness	2mm, 3mm, 4mm, 5mm, 6mm
Width	1000mm,1220mm,1250mm,1500mm,1550mm,2000mm,or customized
Length	2440mm, 3200mm,4000mm 5000mm 6000mm,or customized
Thickness of ALU-layer	0.21mm,0.25mm,0.3mm,0.35mm,0.4mm,0.45mm,0.5mm
Coating material	PVDF, PE, EXPOXY, PU
Colour choose	Solid color, metallic color, brush color, mirror, marble, wooden color, glossy Directly choose colours from alucosuper colour chart

Quality Control

Items	Technology Request
Color Aberration	ΔE≤1,if in one group ΔE≤0.6
Pencil Hardness	≥HB
Coating Luster Deflection	≤10
Coating Flexibility/T	≤2T
Coating Adhesion	O GRADE
Impact Resistance/kg.cm	≥50
Coating Abrasive Resistance/L/um	≥5
Coating Hydrochloric Acid Resistance	No change;5% HCl,24H
Coating Alkali Resistance	No bulge;ΔE≤25%NAOH,24H
Coating Oil Resistance	No change;20# machine oil,24H
Coating Nitric Acid Resistance	No bulge;ΔE≤5% powder,GB/T17748,2008 Test
Coating Solvent Resistance	No bottle face appear,NEK 100 times
Coating Mist Resistance	No less than 1 grade.GB/T1771 request test

Fireproof Testing:

Items	Technology Request	Test Method
Min. length after burning	>0mm	GB/T8625-2005
Ave. length after burning	≥150mm	GB/T8625-2005
Ave. Top Smoke Temprature	≤200ºC	GB/T8625-2005
Smoke Density Grade	≤75	GB/T8627-1999
Smoke Height	<150	GB/T8626-88

Product Description Aluminum plastic composite panel refers to a 3-layer composite panel with plastic as the core layer and aluminum on both sides, and the surface of the product is covered with a decorative and protective coating or film

Characters:
1.Various colors
2.Excellent Weather& corrosion&shock resistance
3.Remarkable Fire&moisture-proof
4.Superior sound& heat,&shock resistance,
5.Lightweight, easy to process,handle and install
Quality Control
The PVDF top coat of ALUCOSUPER is applied 2 or 3 layers coating processing result in up to 25um painting film thickness. Some special color requires 3-4 layers process up to a total thickness of 35um.The quality control for ALUCOSUEPR is accordance with the standards laid down is ASTM.

Producing process
Application 1) Exterior wall decoration,including airport, station, buildings
2) Interior wall decoration, like ceilings, bathrooms, kitchens and balconies
3) Shop door decorations
4) Advertisement board, display platforms and signboards
5)Industrial materials, materials for airplanes,bus and boats
Factory View
Workshop Overview:

Certifications
FAQ 1. Are you a factory or trading company?
We are factory.
2. How is Aluminum Composite Material warranty?
For PE coating we usually offer 5-8 years warranty, and for PVDF coating we usually offer 10-15years warranty. For some special warranty request, we also can satisfy customer, over 20years is ok too.
3. What is the shipping port?
We ship the goods via Ningbo or Shanghai port.

---
