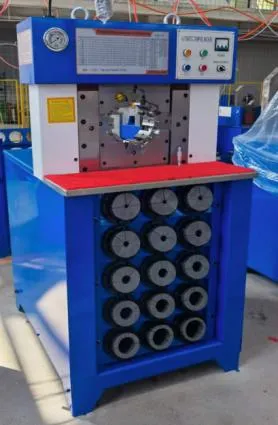

Strongflex Hydraulic Hose 4sp Button CNC Touch Screen Crimping Machine

Product Description

Product Description Strongflex 4SP Button CNC Touch Screen Crimping Machine
*Hose ID: 1/8-3"4SP
*Quantity Of Dies: 15 Sets
*Buckling Pressure: 1300T
*Accuracy: 0.01mm
*Maximum Open Diameter:158mm
*Max Opening: ±53mm
*System Pressure: 31.5Mpa
*Power: 4KW/5.5Kw
*Pump: 10L
*Voltage: 220V/380V 50Hz~60Hz
*Crimping Efficiency. 200pcs/h
*Machine Size:750*1030*1650mm
*Weight: 1200kg Reference Measures Table

Die Set No.		00		10	20		30	40		50		60	70	80		90
13		13		14	15		16
16		16		17	18		19
19		19		20	21		22
22		22		23	24		25	26
26		26		27	28		29	30
30		30		31	32		33	34
34		34		35	36		37	38		39
39		39		40	41		42	43		44		45
45		45		46	47		48	49		50		51
51		51		52	53		54	55
54		54		55	56		57	58		59		60	61	62		63
63		63		64	65		66	67
67		67		68	69		70	71
Hose Size			Ferrule Size Before Crimping			Ferrule Size After Crimping			Hose Size				Ferrule Size Before Crimping		Ferrule Size After Crimping
6	1 Wire		¤19			¤17.5			25		4 Wire		¤45		¤41.5
	2 Wire		¤21			¤18.5					6 Wire		¤47		¤42.5
8	1 Wire		¤21			¤18.5			32		1 Wire		¤49		¤46
	2 Wire		¤23			¤20.5					2 Wire		¤51		¤47
10	1 Wire		¤23			¤20.5					4 Wire		¤53		¤49
	2 Wire		¤25			¤22.5					6 Wire		¤55		¤50.5
13	1 Wire		¤28			¤25.5			38		1 Wire		¤55		¤52
	2 Wire		¤31			¤28.5					2 Wire		¤57		¤53
16	1 Wire		¤31			¤28.2					4 Wire		¤59		¤55
	2 Wire		¤34			¤31					6 Wire		¤61		¤56
	4 Wire		¤36			¤33			51		1 Wire		¤68		¤64
	6 Wire		¤38			¤34.5					2 Wire		¤70		¤66
19	1 Wire		¤34			¤31					4 Wire		¤72		¤67.5
	2 Wire		¤37			¤34					6 Wire		¤74		¤69
	4 Wire		¤39			¤35.5			64		1 Wire		¤86		¤81.5
	6 Wire		¤41			¤37					2 Wire		¤88		¤83
25	1 Wire		¤41			¤38					4 Wire		¤90		¤83.5
	2 Wire		¤43			¤39.5					6 Wire		¤92		¤85

Packaging & Shipping1.PP film wrapped.
2.Into wooden box.
3.According to the customer's requests
Other products
Certifications
FAQ1. Q: What is your terms of packing? A: Standard plastic/woven belt wrap or wrapped according to the customer's requirement2. Q: Can you produce according to the sample? A: Yes, OEM service available. We can produce by your samples or technical drawings.3. Q: What is your sample policy? A: Samples available if we have ready part in stock, shipping cost is on buyer's side.4. Q: How do you guarantee your quality and what after-sale service do you have? A: Our factory follow the quality standard in every producing process. Any quality problem within 3 months after purchase, we are responsible for it.5. Q: How long does my order take to be delivered? A: It generally takes 5-30days, depends on the order.

---
