US$323.00-350.00
|
5 Pieces
(MOQ)
|
Basic Info.
Application
Lifting Platform
Maximum Lifting Height
20m
Shell Material
Aluminum Alloy
Production Capacity
10000 PCS Each Month
Packaging & Delivery
Package Size
100.00cm * 80.00cm * 70.00cm
Package Gross Weight
40.000kg
Product Description
Product Description

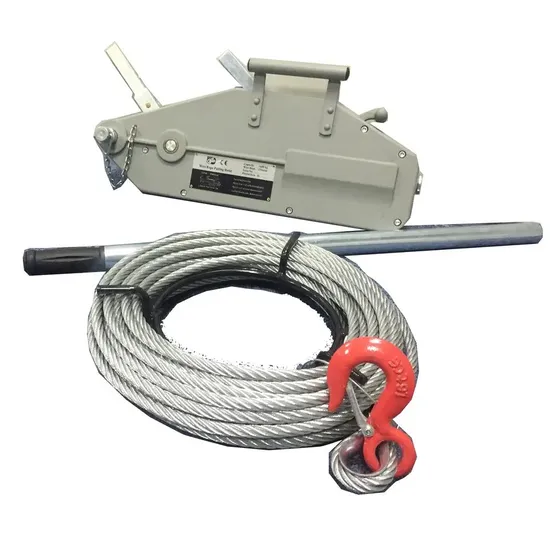

The wire rope pulling winch is a hand operated lifting and pulling device. The puller could also be used for lowering, tensioning and guying which makes it a versatile, portable and multipurpose tool.
The principle function of the wire rope pulling winch is that the rope passes through mechanical jaws rather than being reeled on a drum of a puller or conventional winch.
The tension of the rope is applied by means of two pairs of self-energized jaws which apply a grip onto the wire rope in sections. The effort is transferred to the jaws by two parallel levers, one for forward operation and the other for reverse operation.
A telescopic bar, fitted to either the forward or reverse lever, transmits the effort to the jaw mechanism.
This parallel clamping system provides an evenly distributed grip at a lower force, resulting in less rope wear.The load is held securely at all times.
Product Parameters
Model
| Capacity(ton)
| Rated before Stroke
| Handles Effective Length(mm)
| Level
| Wire Rope Dia
| Wire Rope Length(mm)
| Weight(kg)
| Package size(mm)
|
PH-0.8
| 0.8
| >/52
| 825
| 1
| 8
| </284
| 6
| 428*64*235
|
PH-1.6
| 1.6
| >/55
| 1200
| 1
| 11
| </412
| 12
| 545*97*286
|
PH-3.2
| 3.2
| >/28
| 1200
| 2
| 16
| </441
| 23
| 660*116*350
|
PH-5.4
| 5.4
| >/30
| 1200
| 2
| 20
| </745
| 45
| 800*180*500
|
Detailed Photos
Packaging & Shipping
>>
