Product Details
Product Description
Product Description

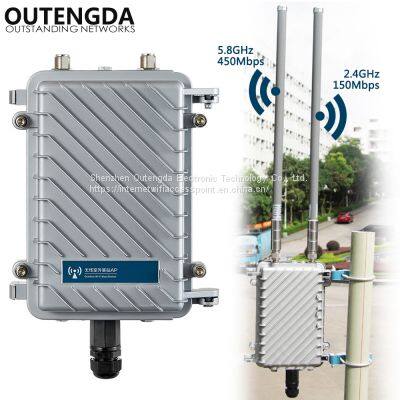

Outdoor CPE AP Router Wireless Access Point WiFi Repeater With External ANT
Weatherproof and Lightning Protection
600Mbps, Dual-band 2.4Ghz 5.8Ghz, meet all-frequency needs
Long Range 360° Full Coverage
100+ Concurrent End-users
Support IEEE802.3AF PoE, power adapter inc.
Overviews
600Mbps, Qualcomm CPU, IP65 water-proof
HW6100 is a Qualcomm Solution 11ac high power industrial use Outdoor Wireless Access Point with the next generation 802.11ac Wi-Fi standard, combined 600Mbps Wi-Fi speed over2.4GHz(150Mbps) and 5GHz(450Mbps), withone detachable outdoor 8dBi Omni antenna and another 12dBi Omni antennaand adjustable high RF power,make this outdoor access point with360° WiFi coverage Radius about 250 meters Max.. Fast Ethernet data rate makes more than100concurrent end userscan access it to enjoy freely HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
Features
MIMO Technology, 600Mbps Data Rate
Comply with IEEE 802.11ac standard 2.4GHz&5.8GHz frequency, the 2T2R protocol with 2.4GHz 150Mbps data rate and 5.8GHz 450Mbps data rate.
Various Operation Modes for the different network environment
It supports wireless AP, Gateway, WiFi Repeater, Bridge, WISP operation mode, then with SMA connector for detachable Omni/panel antenna, the user can flexibly choose a suitable wireless mode to do WiFi Coverage or PTP, PTMP, MPTMP applications.
Excellent Outdoor Weatherproof and Lightning Protection
With metal waterproof, dustproof and sunscreen shell, temperature adaptive and board protective to work in a harsh outdoor environment, meanwhile, the auxiliary cooling function make HW6100 work normally in the different environment.
Specifications
Hardware
|
Wireless Technology
| 802.11ac standard, 600Mbps data rate, MIMO Technology
|
Device Interface
| 1*10/100Mbps auto-negotiation and waterproof RJ45 port
|
1*2.4G N Connector; 1*5.8G N Connector
|
1*reset button, press 15 seconds to revert to default setting
|
Included Antenna
| 1pcs 2.4G detachable 8dBi external antenna(size: Φ20*550mm)
|
1pcs 5.8G detachable 12dBi external antenna(size: Φ20*550mm)
|
Power
| 48v iEEE802.3af standard PoE
|
Size
| 310mm*160mm*80mm
|
Data Rate
| 600Mbps
|
Software
|
Operating Mode
| Wireless AP, gateway, WISP, Repeater
|
Wireless Security
| 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK,EAP encryption
|
SSID
| Multiple SSID, 4 SSID in 5.8G and 4 SSID in 2.4G
|
Using environment
|
Temperature
| Working Temperature:-40℃ ~ 70℃
|
Storage Temperature: -40°C ~ 70°C
|
Humidity
| Working Humidity 10%~90% RH does not condense
|
Storage Humidity 5%~90% RH does not condense
|
PACKAGEHW6100 AP Station *1
2.4GHz 8dBi FRP Omni antenna*1
5.8GHz 12dBi FRP Omni antenna*1
lightning arrester*2 （Option to order separately）
PoE Adapter*1
English User Manual*1
Setting accessory*1
Installation manual download:
/file/d/1Nof1YNlGNCsjoQWdt8Rr93FH4o1wt-p3/view?usp=sharing
Tips: This device is mainly used Outside(installed & connect wifi outside for example in a garden) and it has coverage radius about 200meters in an open ground. The signal would be affected if there were blocks like walls. The signal strength inside house depends on the wall material and wall thickness. Please understand. Thanks!
>>
