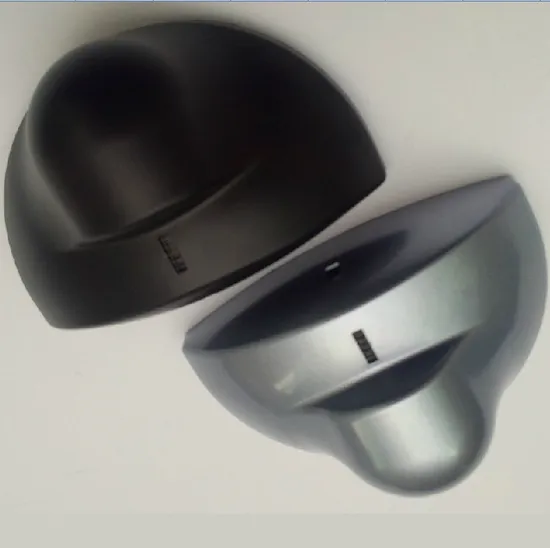

Automatic Sliding Glass Door Sensor (HF-121)

Product Description

Automatic Sliding Glass Door Sensor (HF-121)
Product Description
Technology: Microwave & Microprocessor
EMC: 89/336EEC
Theory: Doppler data process
Transmit frequency: 10.525Ghz
Transmit frequency density: <5mW/CM2
Power voltage: 12-24V AC or DC
Power frequency: 50-60Hz
Power consumption: <2W
Output: Standard relay output
Contact voltage max: 220VAC, 28VDC
Contact current max: 1A
Hold time: 1s
Radiation angle: Horizontal 120 degree, vertical 80 degree
Inductive area: 4m(w)X 3m(d)
Inductive area adjustment: Antenna angle adjustor
Inductive mode: Mobility
The minimum mobile speed: 5cm/s
Sensitivity adjustment: Adjust resistance screw 102
Temperature scope: -10 -- +55 degree
Material: ABS
The payment term of Cheap High Quality Automatic Door Sensor, sliding glass door sensor is t/t, l/c and so on. Price Clause of Automatic Door Sensor, sliding glass door sensor is FOB
Guarantee and After-sale Service
1. We provide many years guarantee on non-movine parts for different product.
2. We provide lifetime support/maintenance for our customers.
3. Marketing service team promise timely speedy comperhensive service
4. Marketing service department carry out personnel responsibilities system
5. After delivery according to national regulation provide installation or installation guide
6. Product occur deformation during the warranty period, we will supply door to door service within 24 hours.
Why choose us?
Because we always do our best to provide professional service and good quality products.
Thank you for browsing our products. For more information, please feel free to contact us. We are alway ready to be on service for you with high-quality product and competitive price.

Technical Data
product name:	automatic door sliding
Door configuration:	Single leaf,Double leaves
Limited Weight:	≤1×150kg,≤2×125kg
Door leaf vidth:	750-1600mm,650-1250mm
Power voltage:	AC110V-220V±10?0/60Hz
Povwer consumption:	<70W
Opening speed:	200-450mm/S(adjustable)
Closing speed:	200-450mm/S(adjustable)
Hold-open time:	0-8S(adjustable)
Manual force:	<40N,<50N
Environment temperature:	-20~+50ºC
Guide rail length:	2100mm,4200mm,4800mm,5000mm,6000mm
Standard Size:	4200mm
G.Weight	31KG/set
