TOC analyzer TA-5.0

Product Details

Product Description

Product Description
Total Organic Carbon Analyzer is R&D production independently by Beijing Neuronbc Laborataries Co.,Ltd. It is used for testing the total organic carbon (TOC)concentration in water samples,which range from 1 to 1000ppb, with high sensitivity and accuracy.

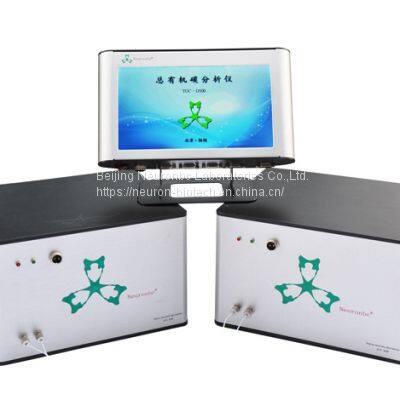

TOC TA-5.0 Total Organic Carbon Analyzer is composed of 1 set of TOC-D500 Total Organic Carbon (TOC) data terminal instrument and most up to 8 units of TA-5.0 total organic carbon (TOC) detection unit instrument. The data terminal instrument is responsible for collecting and displaying the data of each detection unit, which has the function of data storage, printing, alarming, etc. Each detection unit has its own oxidation detector, to detect the TOC of water samples of each monitoring point.
Features
u with a 10 Inch Touch screen, can control to 8 sets of detection unit;
u RS-485 communication interface;
u Query history by time;
u The detection principle of ultraviolet static oxidation;
u The diameter of inlet and outlet water pipe is 1mm Teflon tube, equipped with 50 quick connector;
u Ultra low detection limit;
u Best data stability;
u Matching micro printer, can be printed in real time.
Specification:

Measuring Range	1 µg/L～1000 µg/L	Sample temperature	0~100℃
Conductivity detection range	0.055 µS/cm ~6.000 µS/cm	ambient temperature	10~60℃
Measuring limit	1 µg/L	Relative humidity	≤ 85%
Measuring precision	±5%	Sample speed inside	0.5ml/min
Response time	Within 30 min	Linearity		Repeatability error	≤ 3%	Power supply	220V±10%
Dimension（mm）	400*240*310	Mains frequency	50Hz±1Hz
Range drift	±5%	Rated power of test unit	50W

Application domain:
The system can be used to detect TOC concentration of purified water and injection water and deionized wate in the pharmaceutical industry; online monitoring of water system in pharmaceutical industry, Ultra pure water preparation system for semiconductor industry and water processing and power plant deionized water preparation process. It also used for detection of the semiconductor industry, power plants, scientific research units, laboratories and other ultrapure water’s TOC.

---
