US$18,600.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Product Name
Fabric Cutting Table
Control
by Computer Control, PLC Control
Suitable for Material
Automotive Interior, Fabric, Foam, Plastic, Leather
Classification
Cutting Machine
Over-Lock Stitch
Cutting Table
Nailcatcher Machine Stitch
Cutting Machine
Buttonholing Machine Type
Cutting
Transport Package
Plastic Film or Packed in Wooden Cases
Origin
Guangdong of China
Production Capacity
3000sets/Years
Product Description

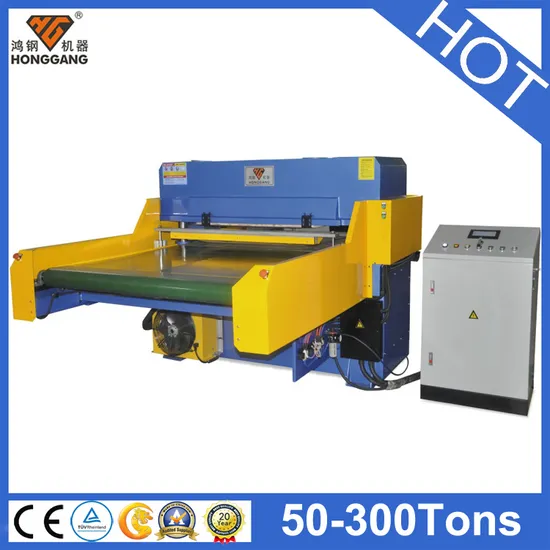

High Speed Automatic Fabric Cutting Table (HG-B60T)
The cutting machine used for die cutting soundproof products,automotive interior,car seat covers,leather,foam,multi-layerfabrics etc.rolls materials.
1.Cutting Video:
Fully hydraulic automatic Roller Feeding die cutting machine for leather&sponge-foam cutting video:
https://hgcutting.en.made-in-china.comG&index=1
More cutting machine video on our youtube page:
https://hgcutting.en.made-in-china.com
2.Features and Advantages
1.Automatic roller-in-feeding,moveable clamp out-feeding,allows all cutting process without any labor.
2.Roller device with auto rolling function to roll materials easily;rollers easy to change.
3.Controlled by PLC(Programmable Logic Controller),with touching screen,to adjust working pressure,stroke,feeding speed easier,faster and more precise.
4.Auto-balance structure of double-cylinder,four-column and self-balance connecting rod,makes sure equal pressure in any working area.
3.Product Specification
Model | Cutting Force | Dimension/(mm) | Cutting Area | Moter | Stroke | Net Weight |
| HG-B60T | 60 Tons | 2100*2200*1700 | 810*1400mm | 5.5kw | 50-240mm | 4000kg |
| HG-B80T | 80 Tons | 2100*2200*1700 | 810*1400mm | 7.5kw | 50-240mm | 4500kg |
| HG-B100T | 100 Tons | 2100*2200*1700 | 810*1400mm | 7.5kw | 50-240mm | 5500kg |
| HG-B120T | 120 Tons | 2100*2200*1700 | 810*1400mm | 11kw | 50-240mm | 5500kg |
| HG-B150T | 150 Tons | 2100*2200*1700 | 810*1400mm | 11kw | 50-240mm | 6000kg |
Remark:Cutting force can be from 50 tons to 300tons;cutting area can be (610/710/810/910mm)×(1400/1600/1800mm),etc
4. FQA:
1)What's warranty of roll cutting machine?
12 months Warranty
Life-long maintenance service for machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.
3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.
4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.
5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.
6)Are you a factory or trading company?
We are a factory and manufacturer
Don't know how many ton you need?
Please contact us!
If you are not sure if your material can be cut by this cutting machine,we want to know the product information:
Material: | |
| Max. material width: | |
| Max. material thickness: | |
| Max.cutting length: | |
Send your Inquiry Details in the Below, Click "Send" !
we will reply within 24h!
>>
