2016 New Toilet Paper Making Machine

Product Description

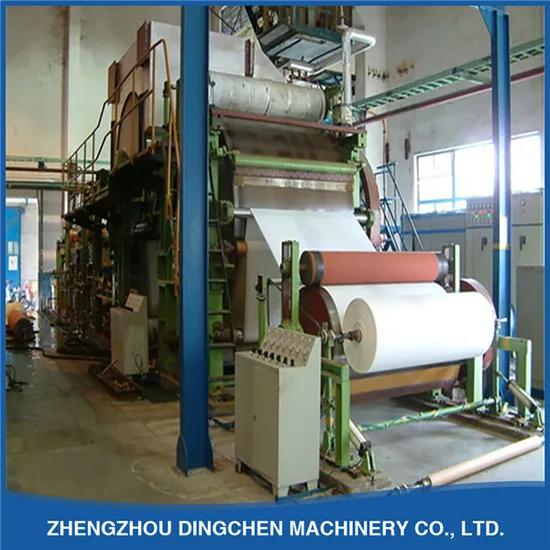

1575mm Single-Dryer& Single-cylinder mould Toilet Paper Machine
Technicial data:
Raw materialwood pulpboard, recycled paper
Output paperhigh and medium grade toilet paper
Weight13-40g/m2
Net paper width1575mm
Wire width1950mm
Capacity3t/d
Speed100- 150m/min
Rail gauge2400mm
Design typeBox type, Back stirring type
Design StandardsCNS Export equipment
Main structure:
1. Cylinder part: φ 1500mm× 1950mm stainless steel wire mould(1 pc), cylinder pressure forming machine(1 set), φ 450mm× 1950mm couch roll(1 pc), rubber HSD38° ± 2
2. Dryer part: φ 2500mm× 1950mm Dryer ( 1 pc ), φ 500mm× 1950mm carrier roller( 1 pc ), air-powered pressure device, rubber HSD 90° ± 2, there is double-layer air hood on the dryer.
3. Windingpart: φ 700mm× 1950mm sweat cylinder (1pc), φ 280mm× 1950mm fly rubber roll( 1pc ). Rubber HSD75° ± 2. Winding on the sweat cylinder
4. Rewinding and cutting part: Matching 1575 rewinding& perforating machine, toilet roll cutting machine.
5. Drive and control part: Adopting AC frequency conversion speed, drive step by step.

No	Name	Quantity
1	1575mmToilet papermachine	1 se t
2	Dryer exhaust hood(double layer)	1 set
3	φ850 axial-flow fan	1 set
4	Cylinder pressure forming machine	1 set
5	Model 15 Roots vacuum pump	1 set
6	Suction box	2 sets
7	3m 3 High consistency hydrapulper	1 set
8	1.8m 2 High frequency vibrating screen	1 set
9	35m 3 Bleacher	2 sets
10	φ700 Impeller	4 sets
11	380 Double-disc refining mill	1
12	0.9 m 2 centrifugal screen	1
13	606 Desander 5 pcs	1 group
14	Double-phase flow pump-100	6 sets
15	1575mm Rewinding&perforting machine	1 set
16	Paper cutter	1 set
17	Air pump box	1 set
18	Frequency conversion controller	1 set
19	Whole station	1 set
20	1 T Boiler	1 set

contact & negotiate!!! pank:8615136136240
company:
we are a professional paper machine manufacturer,here,you can get the whole production line,we promise you good solution cause that is what we pursue
so welcome to visit and negotiate


Perfect service:
1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service


The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation

We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company.

---
