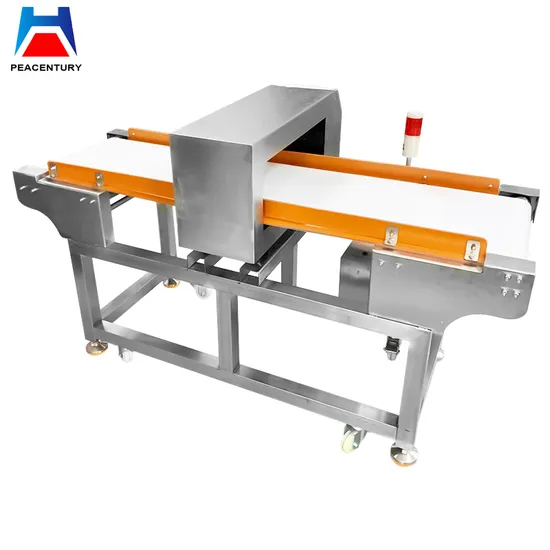

Online Conveyor Belt Food Grade Metal Detector and Weighing Scale

Product Description

Online Conveyor Belt Food Grade Metal Detector and Weighing Scale Scope of use:
Metal detector for food industry is widely used in the detection of meat, frozen meat, sea food, mushrooms, drinks ,fruits , Sugar, Salt and vegetables. Rejection System Food Metal Detector can detect ferrous and non-ferrous and other metal objects , the sensitivity can be adjusted separately , with memory function can be stored 10 kinds of test material·Detector with audible and visual alarm , and automatically exclude , stop , rewind functions , user-friendly menu , easy to operate touch screen.
Specification:

Detection width :	30-80 cm, Customized
Detection height:	8-50cm Customized
Detection sensitivity:	See below table
Alarm mode:	The buzzer alarm, the motor automatically stop
Transfer speed:	25 meter / min or you can select adjust speed
Power:	100-265VAC, 50-60Hz (According to customer request)
Size:	(150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H)
Reject system	Option

Product Show
The reality detector sensitivity depends on the products and operating environment . Please kindly see below:

Detected Height(mm)	80	100	150	200	250	300	350
Belt Width(mm)	250	250	400	400	400	400	400
Belt length	1500
Detector sensitivity(mm)	Fe 0.8	Fe 1.0	Fe 1.2	Fe 1.5	Fe 2.0	Fe 2.5	Fe 3.0
	SUS 1.0	SUS 2.0	SUS 2.5	SUS 2.5	SUS 3.0	SUS 3.5	SUS 4.0
	N-Fe 1.0	N-Fe 1.5	N-Fe 2.0	N-Fe 2.0	N-Fe 2.5	N-Fe 3.0	N-Fe 3.5
Speed of belt	25M/min (Fixed speed) ; If you need adjust 5-40 M/min , please inform us before order
Load ability	20KG
Count	100
Warning method	Sound and light alarm ; The belt can be stopped, continue run or belt return ( the option you can selected in PLC controller)
Reject Ways	when has auto-reject system ,belt continue and rejecting the goods
Application	Non-package ,plastic package ,paper bag or box (non-metallic) product
Work Environment	Temperature -10ºC-40ºC ,relative humility 30-90%

Description:
Metal detector for food industry
is new arrival food metal detector . It has touch screen , 10 level adjustable sensitivity and
memory 10 kinds of products etc .But also it has more higher reliability and stability on check products with water and salt.
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally learn and store product's features.Easy to operate without manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic rejection system can be customized according to consumer's requirements, which can improve production efficiency and save labor costs.
9. Suitable for wet, dry ,dust ,dew environment , made of stainless steal ,has HACCP attestation , waterproof IP65

Product Name	Conveyor Belt Metal Detector Machine For Wet Area Meat Food Industry
Material	304 stainless steel (or specified)
Function	All metal detection (Fe, Cu, Al, SUS, Nonferrous metals, Colored & Fine Metal Alloy etc)
Max. Sensitivity	Fe 0.5mm, N-Fe 0.8mm, SUS 1.0mm
Alarm Mode	Belt-down reject,Flap reject, Sound and Light Alarm, Belt-stop ( and other reject devices
Conveyor speed	Fixed speed 20m/min or adjustable 15-30m/min
Applicable Industry	Food industry, aquatic products processing, toys, clothing, shoes, chemicals, textiles, leather, rubber, plastic etc
Lead time	3-5 days

---
