China Supplier Automatic CNC Turning Lathe Machine 3 Axis

Product Description

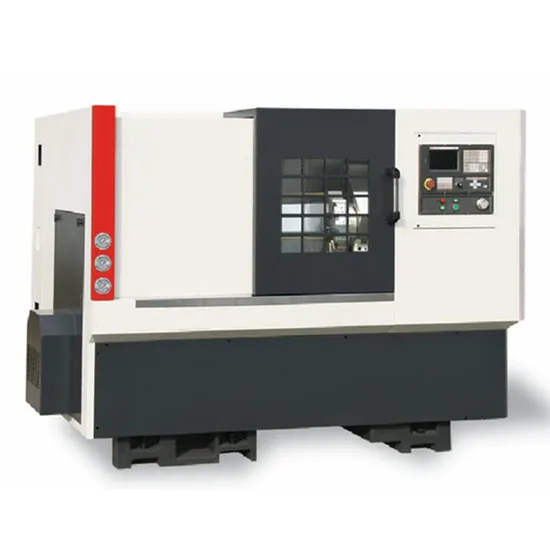

China supplier automatic cnc turning lathe machine 3 axis
The main structural features of machine tools are:
1, this machine tool is a high speed, high precision, high reliability oblique bed machine tool. The main components of the bed, bed and headbox are cast with high strength materials to ensure the long-term stability of the machine tool.
2. Adopting integral inclined bed structure and high precision preload Taiwan linear rolling guide, the machine tool has high positioning accuracy, fluent chip removal and is suitable for high-speed and high-precision processing.
3. High-speed, high-precision and rigid shell spindle unit, servo spindle motor, can achieve higher spindle speed. The spindle unit is assembled in a constant greenhouse. After assembling, the spindle unit runs at constant temperature for 72 hours, and then runs for 72 hours to ensure the reliability of high-speed and high-precision performance.
4, choose the way of knife arrangement, change the speed of knife quickly, and have high positioning accuracy.
5. The X/Z direction servo motor is directly connected with the lead screw through the elastic coupling with large torque and low inertia, and the support of the lead screw adopts the pre-stretching structure, which can eliminate the transmission backlash and pre-compensate the influence of thermal deformation on the accuracy during the long-term operation of the machine tool, so as to ensure the positioning accuracy and repetitive positioning accuracy; the advanced centralized automatic lubrication device is adopted, timing and repetitive positioning accuracy are ensured Quantitative automatic intermittent lubrication, stable and reliable work.
6. Machine tool protection adopts full protection design, which is pleasant, beautiful and unique, reliable in waterproof and anti-chip, and convenient in maintenance.

MODEL				TCK36A	TCK46A	TCK56A	TCK66A
Max swing over bed			mm	φ360	φ460	φ560	φ660
Max swing over cross slide			mm	φ140	φ170	φ360	400
Distance between centers			mm	300	350	500	600
Max turning length			mm	300	350	500	600
Screw specifications	X			2510	3210	3212	4010
	Z			3210	3210	3212	4010
Spindle hole			mm	φ48	φ56	φ65	Φ85
Bar capacity			mm	φ41	45	φ50	Φ75
Spindle nose				A2-5	A2-6	A2-6	A2-8
Spindle speed			rpm	4000	3500	3500	2800
Tailstock diameter			mm	φ65	φ70	φ74	φ100
Tailstock taper			No	MT4	MT5	MT5#	MT5
Tailstock travel			mm	200	200	250	500
Electric turret type			station	8	8	8	8
motor torque		X	N.M	6	7.5	10	10
		Z	N.M	6	7.5	10	10
X travel			mm	170	240	200	280
Z travel			mm	350	400	560	600
Minimum setting unit			mm	0.01	0.001	0.001	0.001
Main motor			KW	3.7	5.5	7.5(servo)	11
weight			Kg	2200	2600	4000	4500
dimension			mm	2150x1600x1750	2500x1700x1710	2950×1860×1850	3500x2000x2100

If you are interested in slant bed cnc lathe, pls contact us
TENGZHOU UNI-TECH CO.LTD

Contact person: KITTY XU

---
