CNC Surface Grinding Machine Worktable 320X1000 Mk7132

Product Description

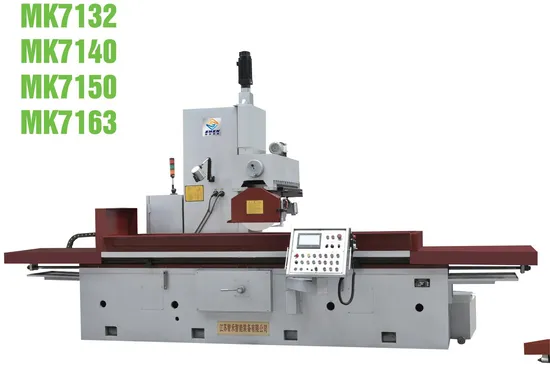

CNC SURFACE GRINDING MACHINE
ACCEPT CUSTOMER SPECIAL ORDER
WE CAN DESIGIN AS PER YOUR ORDER
SPECIFICATION

Description			MK7132	MK7140	MK7150	MK7163
Size of workatable (L×W×H)		mm	1000×320×400	1000×400×400	1250×500×600	1250×630×600
Max.Longitudinal movement of worktable		mm	1100	1100	1350	1350
Max. Distance from the spindle centerline to the worktable surface		mm	580	580	800	800
Max.Cross movement grinding head		mm	350	450	570	700
Vertical movement of the grinding head by handwheel		mm	0.005	0.005	0.005	0.005
Rapid lifting motor	power	Kw	2.3	2.3	2.3	2.3
Rapid lifting motor	power	Kw	1.2	1.2	1.2	1.2
Abrasive wheel dim (D×d×w)		mm	Φ350×40×127	Φ350×40×127	Φ400×50×203	Φ400×50×203
Speed of grinding wheel		r/min	1440	1440	1440	1440
Total power of motor		Kw	14	14	16.5	16.5
Power of spindle motor		Kw	7.5	7.5	9	9
Power of oil pump motor		Kw	3	3	4	4
Processing accuracy		mm	300: 0.008	300: 0.008	300: 0.008	300: 0.008
Surface roughness		μm	Ra:0.63	Ra:0.63	Ra:0.63	Ra:0.63
N/G weight		Kg	3980/4200	4300/4600	5500/6200	6500/7000
Package (L×W×H)		mm	2800×1750×2350	2800×1750×2350	3600×1930×2600	3800×1950×2600

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
