Farmland Leveling Machine 3 M Leveling Machine Laser Grader for Soil Laser Instrument

Product Details

Product Description

Product Description

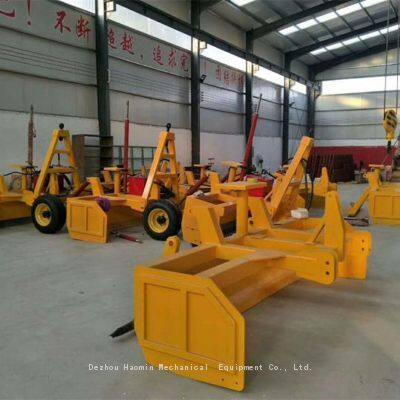

Farmland leveling machine 3 m leveling machine Laser grader for soil Laser instrument
High efficiency laser land grader / leveling machine / leveler
Product Description
This 1JP series laser land leveler is used with 4-wheel farm tractor, can greatly hlep save water and make the land flatness tolerance below +/-2cm which is much better than ordinary irrigation method.
1. It can then save water by 20% or more.
2. By precision land levelling operation, can reduce the unnecessary ridge area by 3-5% to make good use of farm land.
3. With increased land flatness, it can help make fertilizer evenly distributed and increase the utilization rate by around 20%. It will then increase the crop yield by 20-30% with better water irrigation effect and the crop quality at the same time.
4. Better control of weed and pest damage.
5. Crop production cost saving by 5-15%

Model	Unit	1JP200	1JP250	1JP300	1JP350
Working width	mm	2000	2500	3000	3500
Matched power	KW	45-55	55-65	65-88	88-120
Efficiency	hm2/h	1.1-1.6	1.3-1.8	1.6-2.0	1.9-2.3
Working speed	Km/h	5-15
Working distance	mm	500
Max buried depth	mm	240
Ejector/acceptor		NEDO/YD
Receiving controller operating voltage	V	11-30DC
Automatic leveling angle	°	±5
Signal reception angle	°	360
Flatness	Mm/100m2	±15
Moldboard lift speed	mm/s	LIFT≥50, Down≥60
Cylinder settlement	mm/h	≤12
Working dip angle	°	10±2
Hydraulic oil pressure	Mpa	16±0.5
Wheel-base	mm	1590	1790	1990	2190
Wheel Type		235/85R16
Pressure	kPa	200-250
Structural style		Traction
Ambient temperature	ºC	5-40
Dimensions	(L)mm	3000	3000	3000	3000
	(W)mm	2050	2650	3050	3550
	(H)mm	3650	3650	3650	3650
Weight	kg	1000	1080	1140	1300

Q1: Are you a factory or trading company? We are a factory with self-supported import and export right.
Q2: How can I trust on your company? We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Swi tzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand,Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith,punctual, strict quality control and reasonable price, throughout s the pledge we to each customer.
Q3: Where is your factory located? How can I visit there? Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. AllI our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website? It is very easy. Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
Q5: How can I make the payment? Payment is made via Telegraphic Transfer (T/T) through the bank against the Performa invoice. 40% as prepayment and the balance when the goods are ready for shipping.Irrevocable L/C at sight could be also accepted.
Q6: What' s the Payment terms? FOB, the price of the implement without sea shipment costs.
Q7: At which port do you usually ship the good? We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China.
Q8. How about the Warranty ? 12 months warranty from the time of the goods arrive at destination.
