Delynn Processing Machine Vertical Surface Engraving

Product Description

Product Description
Product Description

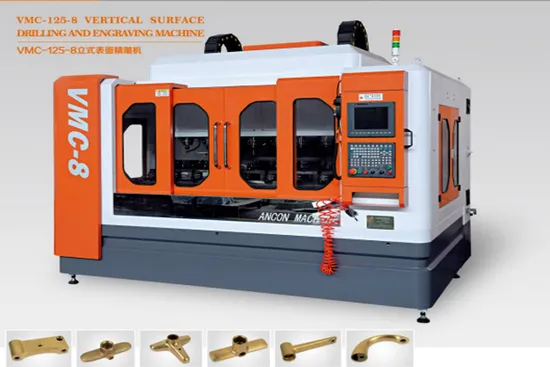

Vertical Surface Engraving Machine
ADVANTAGES: 1) The whole machine adopts GB-HT300 resin sand molding castings,which are treated with fire and natural aging to eliminate
internal stress.
2)Built-in counterweight :the counterweight is attached with guide rob ,and the counterweight does not shake when moving up
and down .
3)Each sliding surface uses an automatic lubrication pump device to ensure the service life of the machine.
4)Fully saled sheet metal ,easy to operate ,waterproof and safe.
APPLICATION: Widely used in Brass, Copper, Alumium alloy machining(Drilling and Tapping) for Plumbling Hardware, Faucets, Valves, Car Spares, etc..
Especially for the cartridge machining. SALE & AFTER-SALE SERVICE: Warranty 1 year free. Lifetime maintenance. Afersale service: instant and fluenct English service, by on line chatting, or by phone, or by local agent repair(such as India, Iyan, etc.), or other way by negotiation.
MAIN TECH. SPEC:

	Item	Unit	Parameter
Processing range	Stroke distance of X/Y/Z axis	mm	500/500/400
Tool library	Number of tool magazines	pc	8
Workbench	Workbench length and width	mm	2150*480
	Maximum load of worktable	kg	600
	T-slot of worktable (number×size×spacing)	mm	3*14*100
Spindle	Spindle form	--	ER32
	Rotating speed	r/min	24000
	Spindle motor power	kw	5.5/7.5
	Motor power of X/Y/Z axis	kw	3/3/3
Precision	Positioning accuracy	mm	±0.01/300
	Repested precision	mm	±0.01
Machine specifications	Machine weight	kg	6500
	Machine dimensions(L×W×H)	mm	3100*2300*2300
Feed rate	Maximum fast feed rate	m/min	20
	Maximum cutting feed rate	m/min	10
Control system	Japan mitsubishi(optional

Company Profile
Company Introduction:
Fujian Nanan Delin Machinery Manufacturing Co.,ltd
Delin Company Located in sanitary home Nanan,is the earliest professional casting equipment manufacturer in the southern parts of china.
With the area of 50000m2,350 workers including 65 middle&highclass professional technicians.
Main Products:Automatic molding machine,low pressure die casting machine,gravity casting machine,furnace,core shooting machine,mix sand machine,abrator,etc...
Widely used in plumbing,sanitaryware,car spares,valves.iron cast lines,etc
It provides a series of service,including technical conseling,mould designing,live training for staff,etc
Packaging & Shipping
Abroad exhibition show
Certifications
After Sales Service
We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.
1.Pre-sale Service System
Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.
2.After-sale Service System
24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.
3.Payment
30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
