US$950.00-1,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Maximum Lifting Height
>20m
Certification
CE, ISO9001:2000
Installation
All-Terrain Crane
Type of Work
Middle-Level
Power Supply
3p 220V-690V
Control Voltage
24V/36V/48V
Working Temperature
-20 ºC to 45 ºC
Working Humidity
85%Rh or Less
Suspension Types
Hook,Manual Trolley,Electric Trolley
Protection
IP54 for Hoist Boday, IP54 for Push Button Control
Rated Capacity
250kgs to 50 T for Single Speed & Dual Speed
Transport Package
Wood Carton
Specification
0.5 ton-50 ton
Production Capacity
1000sets/Month
Packaging & Delivery
Package Size
70.00cm * 43.00cm * 64.00cm
Package Gross Weight
120.000kg
Product Description

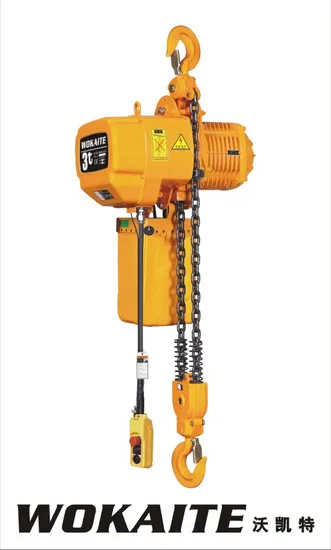

WOKAITE Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system. WOKAITE 1 ton electric chain hoist for sale Feature: 1.Forged hook is strong enough,and can rotate 360 degree.
2.Safety factor of high strength alloy carburizing chain up to 9times.
3.Aviation plug makes electric trolley with the hoist connection more wonderful.
4.Wireless remote control can be assembled.
Power voltage: 220V-690V,dual voltage are available.50Hz are optional.
Control voltage: 24V,36V,48V are optional.
| Model | Single Speed |
| | 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S |
| Capacity(t) | 0.5t | 1t | 1.5t | 2.1 | 2.5t | 3t | 5t |
| Lifting speed(m/min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor power(Kw) | 0.8 | 1.5 | 3 | 3 | 1.5 | 3 | 3 | 3 | 1.5 | 3 |
| Rotation speed(r/min) | 1440 |
| Insulation grade | F |
| Power supply | 3P 220V~690V |
| Control voltage | 24V/36V/48V |
| NO.of chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec.of load chain | Φ6.3 | Φ7.1 | Φ10.0 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | Φ10.0 | Φ7.1 | Φ11.2 |
| Net weight(Kg) | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | 85 | 151 |
| Model | Double speed |
| | 0.5-01D | 01-01D | 1.5-01D | 02-01D | 02-02D | 2.5-01D | 03-01D | 03-02D | 03-03D | 05-02D |
| Capacity(t) | 0.5t | 1t | 1.5t | 2t | 2.5t | 3t | 5t |
| Lifting speed (m/min) | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.4/1.8 | 4.5/1.5 | 2.4/0.8 | 2.7/0.9 |
| Motor power (Kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 |
| Rotation speed (r/min) | 2880 / 960 |
| Insulation grade | F grade |
| Power supply | 3 phase, 200V-690V, 50/60Hz |
| Control voltage | 24V/36V / 48V |
| No,of chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec.of load chain | Φ6.3 | Φ7.1 | Φ10.0 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | Φ10.0 | Φ7.1 | Φ11.2 |
| Net weight (kg) | 54 | 74 | 144 | 150 | 86 | 148 | 159 | 168 | 102 | 184 |
>>
