GNSS Module Support GPS GLONASS Galileo SIMCom SIM68V

Product Description

Product Description

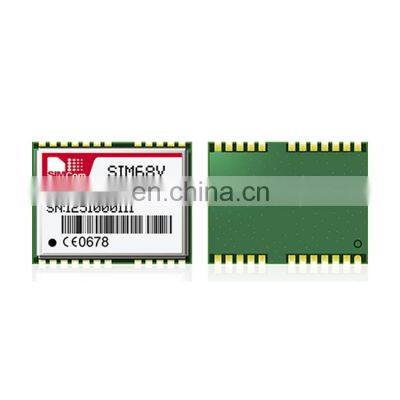

DescriptionSIM68V GNSS ModuleSIMCom presents a high performance and reliable GNSS module-SIM68V. This is a standalone L1 frequencyGNSS module in a SMT type with MTK’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.Mechanical data•Dimensions: 16*12.2*2.4mm•Weight: 1gFeatures•Support GPS/GLONASS/Galileo•Support EASYTM self-generated orbit prediction•Support EPOTM orbit prediction•Support SBAS ranging (WAAS, EGNOS, GAGAN,MSAS)•Support DGPS (RTCM)•Support Jamming Removing•Low-noise amplifier has been integratedInterfaces•Serial interfaces UART, SPI / I²C•Digital I/O EINT0 inputPulse-per-second (PPS)•Protocols NMEAPMTKSupport product•SIM68 EVB KIT with USB V2.0 full speed interfaceApprovals• RoHSREACHCE(RED)Performance data•Receiver type33tracking/99 acquisitionchannel GNSS receiver•Max. update rate10Hz•Sensitivity1Tracking:-167 dBmReacquisition:-160 dBmCold starts:-148 dBm•Time-To-First-Fix2Cold starts:28 sWarm start:26 sHot starts:<1sEPO Assist:13s（CTTFF)• AccuracyAutomatic Position3:<2.5m CEPSpeed4:0.1m/s•Operation temperature5: -40℃~+85 ℃Electrical data•Power supply 2.8V~4.3V•Backup power 2.3V~4.6V•Power consumption2,6Acquisition 34mATracking 30mAAlwaysLocateTM 340uABackup 14uA•Antenna type Active and passive•Antenna power External or internal VCC_RF Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC

---
