Pdkj Handheld Laser Welding Machine Wide Processing Range Fast Welding Speed

Product Description

Product Description

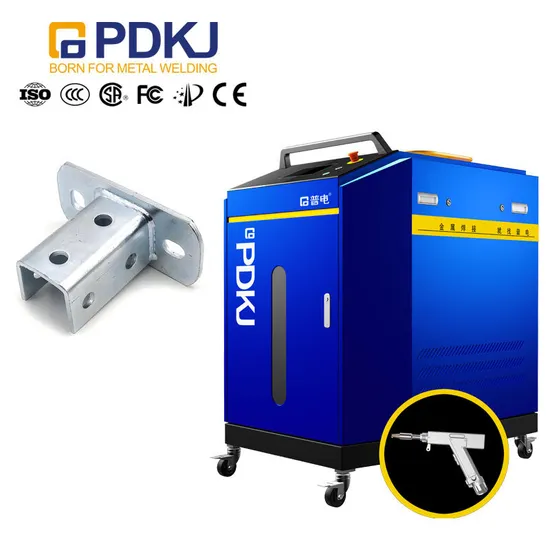

Hand-held Fiber Laser Welding Machine with Automatic Wire Feeding
1500W/2000W/3000W
Automatic wire feeding Multifunctional 3-in-1

The handheld laser welding machine is designed as an integrated structure. It uses the latest generation of laser generator, and the integrated dual drive automatic wire feeding system and equipped with the double swing welding head independently developed by our company. Welding is flexible and convenient, with good beam quality, minimal deformation of the welding body, smooth and beautiful welds, and high reliability. For areas that are difficult to access with ordinary argon arc welding guns, flexible transmission non-contact hang in the air welding is implemented. It is suitable for spot welding and full welding of various metal frame structural parts, sheet metal parts and other complicated and irregular internal corners, external corners, seams, etc. It has the advantages of simple operation, beautiful welds, fast welding speed, etc. It is suitable for welding aluminum alloy plate, stainless steel plate, iron plate, galvanized plate and other metal materials, and can perfectly replace the traditional argon arc welding, arc welding and other processes.

Project	Parameter
Device Name	Handheld continuous laser welding machine
Laser Power	1500W/2000W/3000W
Fiber Wire Length	Standard configuration 10m (customized length up to 15m)
Cooling system	Integrated constant temperature water tank
Operation Temperature Range	15-35°C
Operation humidity range	<70% without condensation
Consumables	Protective lenses

Our Advantages
Advantages of General Electric Laser Welding

1. The human-machine interface is easy to understand and operate, and
beginners can also weld beautiful products;
2. The welding speed is 3-5 times faster than traditional welding speed,
and one device can save at least 3-5 welders per year;
3. Low consumption of laser welding materials and long service life;
4.The weld seam is smooth and beautiful, with small deformation and
wide processing range, reducing subsequent polishing processes and
saving time and cost;
5. There is no deformation, no welding marks, and the welding is firm;
6. The self-developed double swing welding head compensates for the
disadvantage of small laser spot, expands the tolerance range and weld
width of the processed parts, and achieves good weld forming effect;
7. Strong grafting ability, able to be installed and used on robots and
multi axis automation equipment, reproducing complex and automated
welding. Widely compatible with all robots on the market.
Product Parameters

Parameter name	LWM1500	LWM2000	LWM3000
Input power	220V / 1500W	220V / 2000W	380V / 3000W
Automatic wire feeding	Yes	Yes	Yes
Bonding strength with base metal	OK	Very good	Very good
Welding gun model	A/B/C Optional	A/B/C Optional	A/B/C Optional
Laser wavelength	1064nm	1064nm	1080nm
Overall power	2500W	3000W	4500W
Welding interval requirements	<0.5mm	<0.5mm	<1.0mm
Aiming and positioning	Infrared	Infrared	Infrared
Robot automatic welding interface	Yes	Yes	Yes
Welding capacity / Aluminum	0.2-3.0mm	0.2-4.0mm	0.2-6.0mm
Welding capacity / Carbon steel	0.2-4.0mm	0.2-5.0mm	0.2-7.0mm
Welding capacity / Stainless steel	0.2-4.0mm	0.2-5.0mm	0.2-7.0mm
Welding capacity / Galvanized sheet	0.2-3.0mm	0.2-4.0mm	0.2-6.0mm
Welding speed	0-120cm/Min	0-120cm/Min	0-120cm/Min
Net weight / Packing weight	280kg / 331kg	300kg / 351kg	320kg / 371kg
Overall dimension / Packing size	1050*750*1310mm /1110*850*1870mm	1050*750*1310mm /1110*850*1870mm	1050*750*1310mm /1110*850*1870mm

General Electric Dual Water Tank Intelligent IoT Cooling System
1. Super large chassis, industrial grade chiller, designed for high-strength and stable
operation;
2. Internet of Things temperature control system: LCD display with 485 communication
function, remote control, and can be used for large-scale production monitoring;
3. Dual water tank circulating cooling: The temperature control accuracy of chilled water
is ± 0.2-0.5 ºC; Normal temperature water temperature control accuracy ± 0.5-1 ºC;
4. The cooling system is bilingual in Chinese and English, and easy to operate.
Welding comparison

Project	Traditional argon arc welding	Laser welding machine	Handheld Fiber Optic Welding
Heat input to workpiece	Very high	Low	Low
Deformation and undercut of workpiece	Large	Small	Small
Subsequent processing	Polish	No or minimal polishing	No or minimal polishing
Welding speed	General	More than 2 times of argon arc welding	More than 2 times of argon arc welding
Applicable materials	Stainless steel/carbon steel/galvanized sheet/aluminum alloy/copper material	Stainless steel/carbon steel/galvanized sheet/aluminum alloy/copper material	Stainless steel/carbon steel/galvanized sheet/aluminum alloy Gold/copper material
Consumables	More	Less	Less
Operation difficulty	Complex	Average	Simple
Environmental Protection Impact	Not environmentally friendly	Environmentally friendly	Environmentally friendly
Welding fault tolerance	Good	Average	Good
Double pendulum hand holding head	No	No	Yes
The brightness of light spot is adjustable	None	None	Yes
Welding quality	Poor	Average	Good

The welding head can weld the workpiece at any angle, suitable for various complex weld seams and various devices.
Our team
Packaging & Shipping
Patent certificate


FAQ
1,Can the welding speed of spot welding machines be adjusted?Answer: Yes, our spot welding machines support adjustment of welding speed. You can flexibly adjust the welding speed according to specific process requirements and material characteristics to achieve the best welding results.2,Can the spot welding machine be connected to other auxiliary equipment?Answer: Yes, the spot welding machine typically supports connection to other auxiliary equipment such as welding fixtures, positioning devices, and automatic wire feeders. These auxiliary devices can improve welding accuracy and efficiency to meet more complex welding requirements.3,How is the cooling system of the spot welding machine maintained?Answer: The cooling system of the spot welding machine is crucial for ensuring stable equipment operation. When maintaining the cooling system, the quantity and quality of the cooling liquid should be checked regularly to ensure it is sufficient and free from contamination. Additionally, clean the radiator of the cooling system to prevent dust and dirt from blocking the heat dissipation channels. If the cooling liquid becomes turbid or has an unusual odor, it should be replaced promptly.4,What harmful substances are generated during the welding process of the spot welding machine? Are there corresponding treatment measures?Answer: During the welding process, the spot welding machine may generate smoke, spatter, and harmful gases. To minimize harm to operators and environmental pollution, we recommend wearing protective goggles, gloves, and ensuring good ventilation in the workplace when using the equipment. Additionally, we can provide exhaust treatment equipment to further reduce the emission of harmful substances.5,How is the welding pressure of the spot welding machine adjusted? What are the influencing factors?Answer: The welding pressure of the spot welding machine can be adjusted through the pneumatic system or mechanical devices. The main factors affecting welding pressure include material thickness, hardness, and welding process requirements. Proper welding pressure ensures the firmness and quality stability of the welding joint.6,Does the spot welding machine have automatic detection capabilities to monitor abnormalities during the welding process?Answer: Yes, our spot welding machine is equipped with automatic detection capabilities to monitor abnormalities such as abnormal currents and excessive temperatures during the welding process in real-time. Once abnormalities are detected, the equipment automatically takes corresponding protective measures to ensure the safety and reliability of the welding process.7,Which industries can the spot welding machine be applied to?Answer: The spot welding machine is widely used in multiple industries, including automobile manufacturing, electronics manufacturing, metal processing, aerospace, and new energy, among others. In the automotive manufacturing industry, spot welding machines are commonly used for body welding and component assembly. In the electronics manufacturing industry, spot welding machines can be used for welding and assembling electronic components. In the metal processing industry, spot welding machines are used for metal material joining and processing, etc.8,Does the spot welding machine support customized welding processes?Answer: Yes, we place great emphasis on meeting customers' personalized needs. Our technical team can customize exclusive welding process parameters and solutions for you based on your specific process requirements and material characteristics to ensure that welding quality meets your expectations.

---
