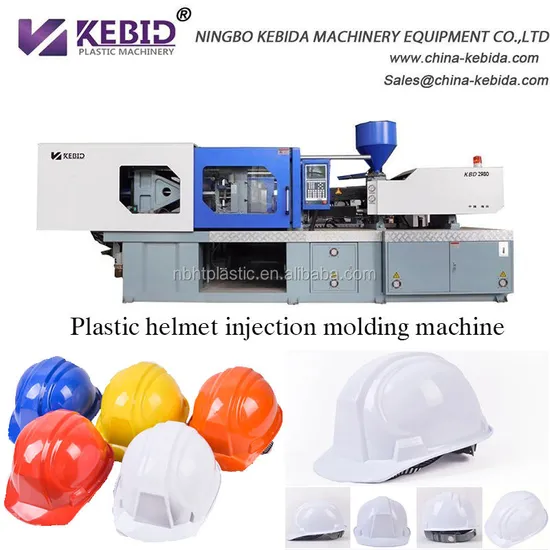

Kebida Kbd298 Injection Molding Machine 298t Helmet Making Machine

Product Description

Company Profile
Ningbo HYSTAN(KEBIDA) Plastic Machinery Manufacturing Co. Itd., located in Chinese eastern seaside city of Ningbo, is a professional high-new technology injection machine manufacturing enterprise. The company, through continuous reform, innovation, carrying on scientific optimization management, sticking to purpose quality first, sincerity first, client first, now has a skilled professional technical team. The Independently developed HYT Series and KBD Series always pass strict test in processing of design, material purchasing, fittings assemblies and output of the machine. And the machine passes the test of International Testing Center. The main parameters, safety characteristics, hydraulic system and electronic system achieve top level in the industry. HYT Series and KBD Series injection machine have characteristics: beautiful figure and appearance, strong clamping force, high precision, low noise, energy saving and low power consumption. The company has dozens of sales network and service department in China. The machine also has been sold to Russia, Southeast Asia, Middle East, South America, Europe, and other Countries and areas, earning good reputation from clients in domestic and foreign market. The company sticks to manage concept People Oriented, Client Supreme, pursues first-class high quality output, and is willing to accompany New and Old Client, Colleague to create splendid future!
Product Parameters

SPECIFICATION ITEM			KBD2980
Injection unit	Unit	A	B	C
SCREW DIA	mm	60	65	70
SHOT VOLUME (THEORETICAL)	cm3	791	928	1077
INJECTION WEIGHT(PS)	g	711	835	969
INJECTION PRESSURE	Mpa	168	143	123
SCREW SPEED	rpm	0-170
CLAMPING UNIT
CLAMPING FORCE	KN	2980
TOGGLE STROKE	mm	590
SPACE BETWEEN TIE BARS	mm	620*620
MAX.MOLD HEIGHT	mm	630
Min.MOLD HEIGHT	mm	230
EJECTOR STROKE	mm	150
EJECTOR TONNAGE	KN	70
OTHERS
PUMP MOTER POWER	Kw	29
HEATING POWER	Kw	20.2
MACHINE DIMENSION(L*W*H)	m	6.3*1.66*2.25
MACHINE WEIGHT	T	9

mould
Detailed Photos
why did choose for us?
1. 20 years of professional injection molding machine and mold manufacturer, excellent quality, honest management
2. Continuous technological innovation, optimized product structure, longer service life
3. Lifetime maintenance of the product, 24 hours after-sales service
4. The main components are all world-renowned brands
5. Dedicated quality control department
6. Ex-factory price
7.We can provide customers with good equipment solutions. For example, how big does the device need to be? What size model to buy? What kind of auxiliary equipment does this injection molding machine need? We've got you covered. Feel free to contact us
8.After the sale, the product received unanimous praise
FAQ
Q:How to choose injection molding machine?
A:The injection weight should be about 1.2× product's weight; The tie bar space should be bigger than the mold dimension; Contact with us for more information.
Q:How to pay?
A:40% deposit T/T in advance, the balance 60% payment by T/T before delivery (we accept payment by T/T, L/C etc.)
Q:Is that possible for your company to send engineer to install machine for commissioning, even train our workers?
A:Yes, we can send our engineer to your factory for installing, commissioning, training. We have some engineers flying among different countries for after sale service and technical support. As per experience, if everything OK usually 5-15 days is enough. Therefore, before shipment, we need you to prepare invitation letter for visa. However, please be noted that all cost happened for visa, travel, hotel should be paid in advance by customers. In addition, we cannot guarantee each visa is successful.
Q:If we buy your machines, is there any warranty?
A:Yes, definitely. Totally 24-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 24-months. We will supply those parts in freeway but the possible transportation cost should be paid by clients.
Q:What is different with A,B,C screw, What is the price different?
A:The screw model is designed for different material and requirements, the screw diameter Changes from small, middle and big. There is no price difference in the price for choosing A/B/C screw types.
Q:How to choose the screw ?
A:For PC,Pa(Nylon)and other high viscosity material ,it's better to choose A screw .
For PP,PE,PS materials, better to choose B Screw .
For Recycled material , better to choose C screw .
Q:What's the delivery period after place the order?
A:Normally the delivery date will be in one month after receiving the down payment .

---
