US$132.00-162.00
|
100 Pieces
(MOQ)
|
Basic Info.
Working Voltage of Electric Winch
Low Voltage
Applicable Environment
Universal
Certification
TUV, GS, CE, RoHS
Payment
West Union; Paypal; Tt
Capacity
8000lbs, 8000lbs
Overall Dimensions
540mm*160mm*248mm
Production Capacity
500000 PCS/Month
Product Description
Car winch is a device equipped with a drum and a length of high-strength cable, designed to make heavy-duty pulling easier. Car Winches can be installed either on your vehicle's front or rear ends. A car winch can be on the off-road trails, where fallen tree branches or rocks often litter your vehicle's path. With a winch and your vehicle's engine power, you can easily pull these obstructions out of your vehicle's way.

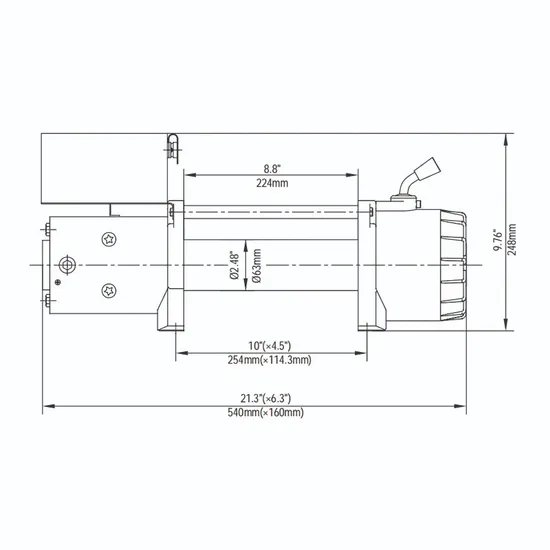

Specifications:
Three stage planetary gear reducer
Total rope on drum: 19.7Ft(6.0m)
Gear Reduction Ratio:230:1
Cable (Dia.xL): Φ21/64"*95'(Φ8.3mm*29mm)
Drum Size(Dia.xL): Φ2.48"*8.9"
(Φ63mm*227mm)
Mounting Bolt Pattern: 10"*4.5"
(254mm*114.3mm)4-M10
Overall Dimensions:21.3"*6.3"*9.76"
(L*W*H) 540mm*160mm*248mm
>>
