Basic Info.
Type
Stone Edge Polishing Machine
Usage
Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Stone Industry
Cutting Ability
High Speed
Dimensions
L8000*W1150*H2500
Maximum Processing
L3200*W2000*H100
Transport Package
Plastic Film Packaging
Origin
Taizhou, Zhejiang Province
Product Description
Product Parameters
| Model | ZLMP-14 | Unit |
| Maximum Processing | L3200*W2000*H100 | mm |
| Main motor power | 1-2th 5.5kw 3-13th 3kw 14th 5.5kw | kw |
| Total power | 56 | kw |
| Main part sizes | L5000*W1150*H1750 | mm |
| Dimensions | L8000*W1150*H2500 | mm |
| Water consumption | 4 | m³/h |
| Total weight | 4.3 | t |
| Machine delivered method | Main part delivered as whole | |
Product Description

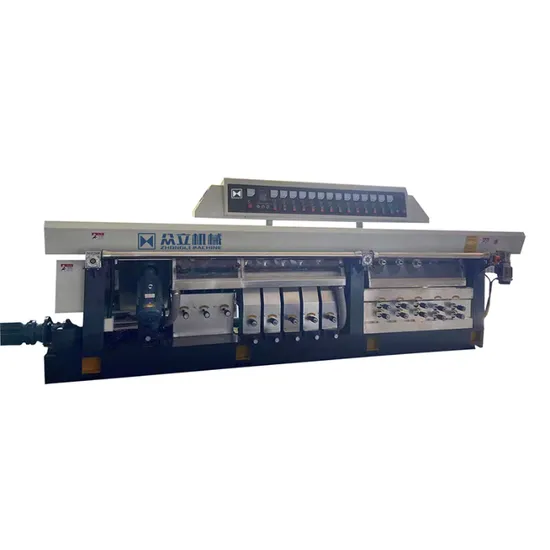

We supply Stone Edge Polishing Machines, type ZLMP-14, for chamfering and polishing the edges of marble,granite,quartz stone, and ceramic.The slabs are upright into the conveyor, and the workheads are under the slabs. After the two conveyors on the cross beams clamp the slab, the workhead starts,so there is no need for the operator to adjust the slab. Some customers need a shape of edge; the operator just chooses a certain group of workheads.
It is high-efficiency, processing 2-3m per minute, high-precision, easy, and simple to operate. 1-5th head for polishing arc edge,French edge; 2-10th for polishing straight edge; 11-13th for grinding small chamfering on surface; 14th for back-side chamfering.
