Zx6350za Automatic Mill Knee Type Manual Milling and Drilling Machine

US$4,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZX6350ZA, ZX6350Z, ZX6350C
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Manual
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Application
Manual Milling Machine
Spindle Taper
Mt4/ISO40
Table Size
1250*320
Longitudinal Travel
600 Option 800
Cross Travel
300
Can Be Used as
Milling and Drilling Machine
Other Name
Milling Machine
Spindle Power
V:1.5,H:2
Max.Drilling Dia.
50
Transport Package
Wooden Case
Specification
ZX6350ZA, ZX6350Z, ZX6350C
Trademark
ALLWAY
Origin
China
HS Code
84595900
Production Capacity
1000PCS/Year

Product Description

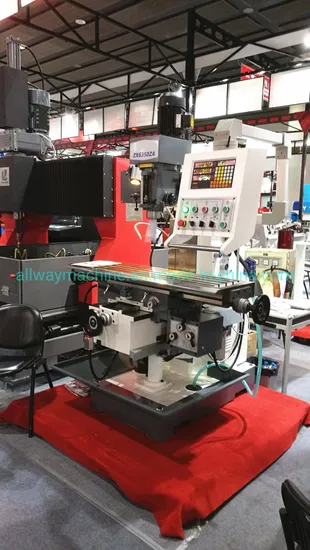

ZX6350ZA Automatic mill Knee Type manual Milling and Drilling Machine
Main features:
1. Z-automatic feed milling head
2. Rectangular guideway on lifting platform
3. High stability
4. Hardened on X, Y, Zaxes.
5. Vertical head swivels +- 45 degree.
6. X--axis travel can be with 800mm (Optional)
Standard accessories
Work light, coolant, drill chuck, mill chuck, spindle arbors, horizontal arbors, wrenches.
Optional Accessories:
DRO on X, Y, Z--AXIS.
Universal dividing head.
Rotary worktable.
Clamping kit.
Specification
MODEL//CODE NO.		 Unit Technical parameters
ZX6350ZA
Spindle taper MT4/ISO40
Max. driiling diameter mm 50, 30
Spindle travel mm 120
Sleeve feed mm/min 0.08/0.15/0.25
Distance form vertical spindle to column mm 200~500
Distance form vertical spindle to table mm 100-400
Distance form horizontal spindle to table mm 0~300
Distance form horizontal spindle to arm mm 175
Spindle speed range r/min 60~1500/8(vertical); 40~1300/12(horizontal)
Table size mm 1250 * 320
Table travel Range of longitudinal, cross travel mm 600 × 300 × 300 22~555/810(MAX. )
Up/down speed of table mm 560
T of table (NO. /WIDTH/DISTANCE) w 3/14/70
Main motor kw 1.5(vertical)2.2(horizontal)
Motor of table power feed w 750
Up/down motor of headstock w 750
Coolant pump motor w 40
Speed of coolant pumps 12
Overall dimension mm 1700 × 1480 × 2150
N. W. /G. W. kg 1450/1600

Optional PIC.
Contact us for more information please!
