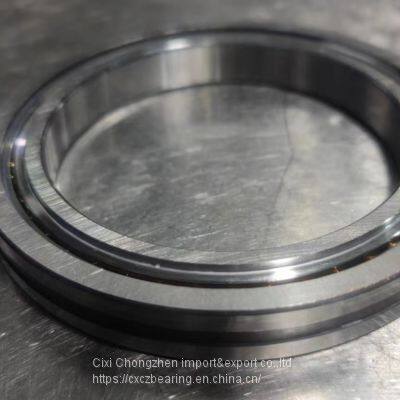

CRBH sewing machine bearing

Product Details

Product Description

Product Description

CRBH series（One-piece inner ring&outer ring，super slim）										Unit：mm
Model	Main dimensions					Shoulder dimension		Basic load rating(radial direction)		Mass
	Inner ring	Outer ring	Roller diameter	Height	Chamfer			CR	Cor
	d	D	Dpw	B	rmin	da	Da	kN	kN	kg
CRBH208	20	36	26.6	8	0.3	24	31	2.9	2.4	0.04
CRBH258	25	41	31.1	8	0.3	29	36	3.1	2.8	0.05
CRBH3010	30	55	41.5	10	0.3	36.5	48.5	7.6	8.4	0.12
CRBH3510	35	60	46.5	10	0.3	41.5	53.5	7.9	9.1	0.13
CRBH4010	40	65	51.5	10	0.3	46.5	58.5	8.6	10.6	0.15
CRBH4510	45	70	56.5	10	0.3	51.8	63.5	8.9	11.3	0.16
CRBH5013	50	80	63.5	13	0.6	56	74	17.3	20.9	0.29
CRBH6013	60	90	74	13	0.6	66	84	18.8	24.3	0.33
CRBH7013	70	100	82.3	13	0.6	76	94	20.1	27.7	0.38
CRBH8016	80	120	100	16	0.6	88	112	32.1	43.4	0.74
CRBH9016	90	130	108	16	0.6	89	122	33.1	46.8	0.81
CRBH10016	100	140	120.2	16	1	109	129	31.7	48.6	0.83
CRBH10020	100	150	122	20	0.6	110	140	50.9	72.2	1.45
CRBH11015	110	145	126.5	15	0.6	122	136	23.7	41.5	0.75
CRBH11020	110	160	133	20	0.6	120	150	52.4	77.4	1.56
CRBH12016	120	150	132.5	16	0.6	127	141	24.2	43.2	0.72
CRBH12025	120	180	148.3	25	1	132	168	73.4	108	2.62
CRBH13015	130	160	143.1	15	0.6	137	152	25	46.7	0.72
CRBH13025	130	190	158	25	1	142	178	75.9	115	2.82
CRBH14016	140	175	154.8	16	1	147	162	25.5	50.1
CRBH14025	140	200	168	25	1	152	188	81.9	130	2.96
CRBH15025	150	210	180	25	1	162	198	84.3	138	3.16
CRBH20025	200	260	230	25	1	212	248	92.3	169	4
CRBH20035	200	295	247.7	35	2	225	270	151	252	9.6
CRBH22025	200	260	248.5	25	5	235	265	92.3	171	4.1
CRBH25025	250	310	277.5	25	1.5	262	298	102	207	4.97
CRBH25030	250	330	287.5	30	2.5	269	306	126	244	8.1
CRBH40035	400	480	439	35	2.5	422	459	156	371	14.5
CRBH50040	500	600	548.8	40	2.5	526	572	239	607	26

---
