Product Description
Product Description

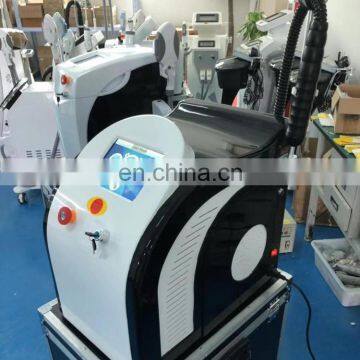

portable picosecond laser tattoo removal machine q switched nd yag laser
Treatment principle:
Rox Anderson and John Parrish, "the principle of selective photothermolysis", the shorter the laser action time, the target tissue to absorb the accumulation of laser energy is less likely to spread to the surrounding tissue, the energy was limited extent In the target treatment needs to protect the surrounding normal tissue, so the treatment of the stronger the selectivity. Picosecond laser pulse width is only one hundredth of the traditional Q-switched nanosecond laser, its excellent performance to ensure that picosecond laser pulse crushing of pigment particles more thoroughly, while the surrounding tissue damage
Laser Type: Picosecond Laser
Laser wavelength: 755,1064,532,1320nm
Power supply: 220V / 110V
The highest energy: 2000mj / 2000mj / 2000mj
Operating frequency: 1-10HZ
Power: 1500W
Cooling system: air-cooled
Light energy performance
1. Single pulse energy: Jm ≥ 1500mj
2. Laser output instability: S ≤ ± 15%
3. Laser output energy reproducibility: Rj <10%
4. Output energy and energy display error: ≤ ± 20%
5. Surgery spot diameter: 1-4nm range continuously adjustable
6. Spot positioning focusing accuracy: the error ≤ ± 0.5mm
7. Multi-joint light guide arm adjustment range: ≥ 45 ° in the horizontal plane, the vertical height from the ground between 60cm - 80cm.
Number of treatments
The number of treatment of specific patients by the concentration of the lesion pigment concentration, depth, pigment composition, the amount of laser treatment for each treatment, the patient's macrophage pigment particles on the absorption of the body Circumstances and other factors. General exogenous pigment to be more than 1 treatment, endogenous pigment to be more than 3 times to obtain satisfactory results, a small number of patients after repeated treatment is still not satisfactory.
6 effects of contraindications
1)For patients with deep skin, the use of this instrument treatment, because the skin of patients with shallow pigment absorption of the laser, the skin will be slightly damaged, it is recommended that the skin whitening and then use the instrument treatment.
2)Laser irradiation, the skin will appear redness, subcutaneous oozing and inflammatory response, postoperative treatment of frozen parts, and the use of place after burns and scars ointment.
3)Some of the metal ions (such as iron ions) of the pigment, the laser irradiation will appear not easily absorbed by the black chemicals (such as ferrous oxide) to deepen the color of the treatment site, at this time due to different pigment composition caused, and Non-quality of the instrument itself.
4)After treatment, the treatment site should be kept clean and dry, to avoid infection.
5)After the treatment of knot furuncle, should be the other off their own, to prevent people from forcibly cut scar.
6)The treatment of the same parts of the prohibition of continuous repeated exposure, otherwise the accumulation of heat will cause damage to the organization.
Maintenance
1)This product consists of precision laser generator and microelectronic instruments. Its maintenance and repair should be consistent with precision optical instruments of microelectronic devices General provisions. Storage and use to prevent bumps, collision, extrusion, vibration. After each use to be reset, with a special day after the use of packaging materials covered, dust storage.
2)Clean the output lens: the end of the arm
If there is, please put the arm straight up, remove the handle, with cotton swab dipped in absolute ethanol or saline gently wipe the lens .
RFQ
1. Do you have any warranty?
Yes, we have. 12 months warranty.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What certification do you have?
All of our machines have the CE certification which ensures the quality and safety. Our machines are under strict quality management to ensure good quality. Because we fully understand that it will be a great trouble if machine have any problem during working at oversea.
4. Will you teach how to use the machine?
Yes, we can provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.
5. Why should you choose us?
Powerful factory, giving the competitive price and best technology support 7-years' experience in producing beauty machine, strong R&D 1 years-warranty and 8/24 online after-sale service CE Certification, the key for you to legally use and sell the machine Diversity of customized service, strong OEM & ODM capability available
>>
