US$40,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Electromagnetic Heater
Electromagnetic Heater
Computerized
Non-Computerized
Cutting type
Dice-face cutting
Capacity
1000kg/hr-1000kg/hr
Transport Package
Film with Wooden Case
Specification
According to the different model
Origin
Jiangsu, China (Mainland)
Production Capacity
50 Set/Sets Per Year
Product Description

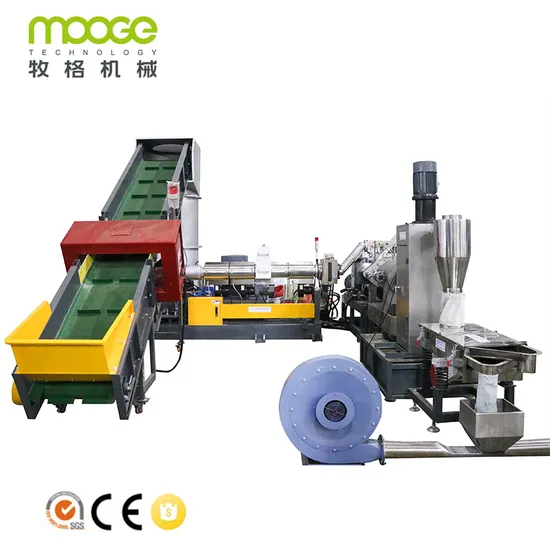

pp pe film compactor granulating line/pp woven bag compactor granulator machine
This plastic pelletizing granulating line which is suitable for many kinds waste plastic materials recycling and making pellet, such as PE/PP/HDPE/PLA Film,bags, PLA film, clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelleted. And also has very developed design, makes sure this machine has a long working life and economical efficiency in using.You can choose use single stage or double stage pelletizing machine according to how clean of you material; also you can choose the cooling cutting system or die-face hot cutting system.
Process flow of plastic film granulating machine:
Feeding conveyor belt →metal detector(optional) → compactor feeder→single screw extruder →hydraulic screen changer→hot die face cutting system→water cooling tank→dewatering machine → vibration(optional) → air conveyor→silo
Features:
1- Single or double stage model
2-Compacting force feeding system
3-Adopt hard teeth ZLYJ-type gearbox branded
4-With natural degassing vent
5-Fast hydraulic screen changer board with double screen type
6-Die- face hot cutting system
7-Stainless steel made water ring, cooling tank, centrifuge dryer and silo
Technical data of plastic film pelletizing line:
| Model | Screw Dia | Screw L/T | Motor power | Capacitykg/h) |
| RDS-SJ85 | 85mm | 25-35:1 | 55KW | 150-200 |
| RDS-SJ100 | 100mm | 25-35:1 | 75KW | 250-300 |
| RDS-SJ130 | 130mm | 25-35:1 | 90-110KW | 400-500 |
| RDS-SJ150 | 150mm | 25-35:1 | 110-132KW | 500-600 |
| RDS-SJ160 | 160mm | 25-35:1 | 132-160KW | 600-800 |
| RDS-SJ180 | 180mm | 25-35:1 | 160-200KW | 800-1000 |
| RDS-SJ200 | 200mm | 25-35:1 | 185-225KW | |
Our Services
• Pre-sale: we given client the details technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, technician support for the clients.
• After sales: we arrange engineer to install the machinery and training the workers for client.
• We have 24hours team to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always up date the new technology to every customer.
FAQ
1- How to choose proper products you want?
• Please tell us as detail as what you want?
• What's your raw material it is?
• What's the final products you want to produce?
• What capacity you want it performance?
2- How to control the quality?
• We have technical, engineer team design the sample machinery before enter into market
• Production QC team ensure the machine manufacturing quality
• We will running every machine after finished before shipment
• Optional choose by client running the machinery by material
About the machine if any need pls contact with me anytime freely.
>>
