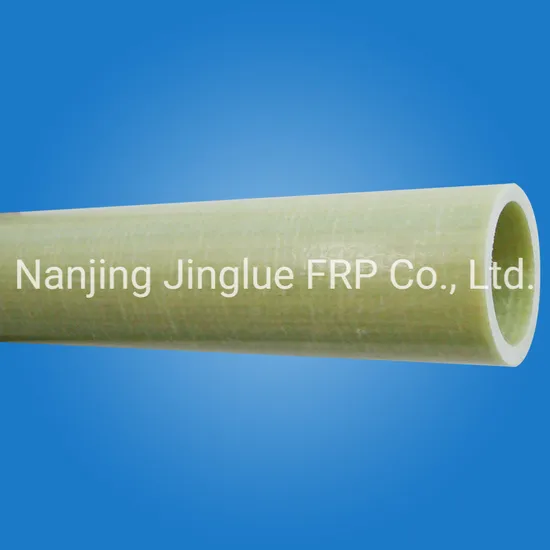

Polyurethane Pultruded Profiles (Polyurethane Pultrusion)

US$3,000.00-5,000.00 1 Ton (MOQ)

Basic Info.

Model NO.
Polyurethane Pultruded Tubes
Thickness
Above 2mm
Usage
Industral, Load-Bearing Structure
Product Categories
FRP Tube
Molding Method
Pultrusion
Material
Polyurethane Resin Mixtures, Fiberglass,etc.
Fiber Type
GFRP
Type
Polyurethane FRP
Transport Package
According to Customer′s Request.
Specification
Pallet, Plastic Bag, Carton, etc.
Trademark
Jinglue
Origin
Nanjing, China
HS Code
3926909090
Production Capacity
500 Tons/Year

Product Description

Advantages:
1. Better mechancial property.
2. Better cost performance.
3. Easy production
Physical Properties of Polyurethane Pultrusion Profiles:
Item Unit LW(0º) CW(±90º)
Density Kg/cm3 2.0-2.1
Fiberglass Content % >80
Tensile Strength Mpa >1000 >50
Tensile Modulus Gpa >50 >13
Flexural Strength Mpa >1200 >100
Flexural Modulus Gpa >45 >13
Interlayer Shear Strength Mpa >130 >40
Elongation to break % 2.3 0.5
Flammability V-1
Coefficient of thermal expansion m/(m.K) 5×10e-6 26×10e-6
Glass transition Temperature(Tg) ºC 130
Heat deflection temperature(HDT) ºC 240

We successfully apply the Polyurethane Pultrusion profiles in the using of truss structure.
The result meets the design requirements and is satisfying.
