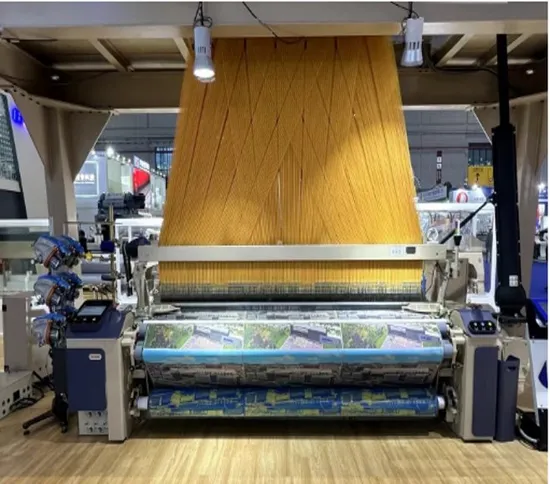

Four Feeder Higher Speed Lower Consumption Cottong Weaving Oxfoard Air Jet Loom

Product Description

Product Description
High speed and high efficiency The new structural wall panels are equipped with four reinforced beams to build a strong and stable body, laying a solid foundation for the high-speed and efficient operation of the loom.

Variety adaptability The continuous optimization and personalized design of the weft insertion system, beat-up system and shedding system can meet the needs of stable and high-quality weaving of various fabrics.

Excellent energy saving Adopt new energy-saving nozzles, optimize the weft insertion air path, optimize the distance between the electromagnetic valve and the nozzle and further reduce air consumption.
The use of a new direct-drive motor also greatly reduces the energy consumption of the loom.

Item		Specification	Optional
		HA-N HA-9020N
Reed width	Nominal reed width(cm)	170,190,210,230,280,300,340,360,380cm
	Effective reed	Nominal reed width reduction (170~230cm) 0~-60cm from 170 to 230cm Nominal reed width reduce 0~-60cm Nominal reed width reduction 0~-80cm(≥280cm) 0~-80cm width more than 280cm, Nominal reed width reduce 0~-80cm
Weaving range	spun	Ne100~Ne2.5
	filament	22dtex~1350dtex
Weft selection		,,, Two color, four color, six color,eight color
power	Brake control	Positioning and stopping by electromagnetic brake control
	Motor	super start motor drive 2.2KW(crank shedding),3.0KW(cam shedding),3.7KW(dobby shedding ),6.5KW( jacquard shedding)	Direct drive motor
	running operation	Two hand operation of control buttons
Weft insertion	Weft insertion rate	:2300/ Maximum weft insertion rate: 2300m/min
	nozzle	, Combination of main nozzle and auxiliary nozzle Auxiliary main nozzle	Drafting nozzle
	steel reed	Profiled reed
shedding		:46 Crank connecting rod shedding: 4 pcs heald frame or 6 pcs heald frame
		10 Positive cam shedding: Up to 10 pcs heald frame
		:16 Dobby shedding: up to 16pcs heald frames
		jacquard shedding
let off		Positive loose warp device	negative loose warp
		electronic let off	Double warp beam
	Diameter of the beam flange	Diameter of the beam flange:Φ800mm	Φ914mm Φ1000mm
take up		electronic take up
		25~300/ Standard density 25-300 picks/inch
	Roll cloth diameter	:Φ600mm(,,),Φ520mm() Maximum roll cloth diameter: Φ 600mm (cam, dobby, jacquard shedding) Φ 520mm (crank shedding)
beating up		Solid straight shaft beating up	"U""U"shaped beating up shaft
		(),() Four-link beating-up (narrow width), six-link beating-up (wide width)
		configure rocker shaft middle support
Length measurement and weft storage		Electronic weft feeder
weft stand		4(2), 8(4), 10(6) Floor type 4 barrels (2 nozzles), Floor type 8 barrels (4 nozzles), Floor type 10 barrels (6 nozzle)
Selvage		Planetary gear type Selvage device	pneumatic tuck in device
Yarn end treatment		2 Discarded take-up 2pcs drum-type
Weft cutting		Mechanical weft cutting device	electronic weft cutting device
lubrication		, Main transmission part oil bath type, manual centralized oil supply	Electric central oil supply
stop machine device		:, Weft yarn: photoelectric weft feeler, double probe
		: Warp yarn: Electrical contact six-row dropper
		:, Others: selvage yarn, discarded edge yarn and automatic stop when the yarn is broken
		:,4 stop reason: show the information on the display, multi-function 4-color light stop display
automation		inverter to adjust speed.
		Memory card function
		automatic pick remover

Our Advantages
Company Profile
Qingdao Haijia Group was founded in 1995 and currently has more than 500 employees. The company focuses on and deeply cultivates the field of shuttleless looms, and has established an internationally competitive global design, procurement, manufacturing, marketing and service integration. Network, with an annual production capacity of 16,000 water-jet air-jet looms.
The group consists of three companies--Qingdao Haijia Machinery Co., Ltd., Qingdao Century Haijia Machinery Co., Ltd., and Qingdao Zhiduoduo Information Technology Co., Ltd., three factories-Jiaonan, Wangtai, Huangshan, and four domestic offices--Sheng Ze, Siyang, Nantong, Jinjiang, two overseas offices - Turkey, Vietnam.

---
