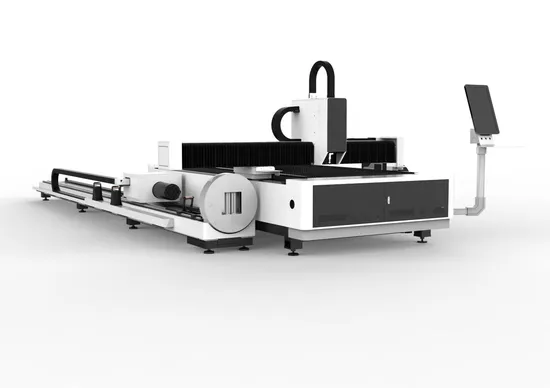

3000W 6000W Dual Use Sheet Tube Fiber Laser Cutting Machine

Product Description

Product Description
Fiber laser tube cutting machine is a high-end mechanical equipment for precise processing and cutting of pipe raw materials. It is generally composed of a laser generator, a load-bearing bed, a cutting head, a pipe clamping chuck, a cooling device, and a control system.
Ultra-high tensile aviation aluminum beams have higher strength and better dynamic performance. Sheets and pipes can be cut, which saves costs and is cost-effective.


Super large pipe diameter, super strong holding capacity, can effectively hold square pipes, round pipes, waist pipes, D-shaped pipes, hexagonal pipes and other special-shaped pipe cutting; helical gear transmission, higher transmission efficiency, no noise; automatic feeding device, solve The problem of deformation during long pipe cutting operation can effectively ensure the stability of the support.

Model	3015ER	4020ER	6025ER
Sheet cutting area	3000*1500mm	4000*2000mm	6000*2500mm
Laser power	1000 - 6000W	1000 - 6000W	1000-6000W
Positioning accuracy	±0.02mm/m
Maximum moving speed	130m/min
Chuck Specifications (Maximum Diameter)	160mm,220mm,350mm

Packaging & Shipping

The machine will be packed in wooden boxes or vacuum packed. The packaging of the goods should be moisture-proof, rust-proof, moisture-proof, corrosion-proof and shock-proof, and should be suitable for sea transportation/multiple transportation.

---
