for Milling Soft Metals and Hard Alloys Advanced with Bbt30 20000rpm High Speed CNC Machine

Product Description

Hot Sale Alert: Unleash the pinnacle of precision and power with our state-of-the-art High-Efficiency Vertical CNC Milling Machine
Product Description
Product Parameters

Model		TZ-640B
Worktable size L*W	(mm)	700x400
Work table Max. loading	kg	300
T-slots size (N×W×D)	mm	3x14x125
X/Y/Z axis travel	mm	600/400/300
X/Y/Z axis feed speed	m/min	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw
X/Y/Z axis linear Guide	mm	30/30/30
Spindle taper		BBT30
Max. spindle speed	rpm	20000
Spindle motor power	kw	5.5
Distance from spindle nose to workbench	mm	150-450
A.T.C capacity	pcs	21
Positioning accuracy (X/Y/Z)	mm	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300
Machine weight	kg	3600
Machine size (L*W*H)	mm	1850*2300*2250

Main Parts of Equipment
(1) Base Introducing our groundbreaking large-span heavy base, crafted with guide rail specifications that exceed industry norms by an impressive 20%. This meticulously engineered base guarantees exceptional force dispersion, enhancing processing capacity and ensuring unwavering stability even during intense workloads. Featuring a smartly designed short saddle overhang, it significantly boosts dynamic accuracy. Moreover, the Y-axis motor is strategically positioned at the rear to minimize operator reach, offering outstanding ease in managing workpieces and elevating overall processing convenience.
(2) Uprights (a) Experience unparalleled stability and simplified maintenance with our innovative herringbone column design, a superior alternative to traditional single-column structures. (b) Our cutting-edge herringbone structure bed, enhanced with state-of-the-art gold protection and efficient chip removal systems, effectively prevents water leakage during installation, preserving the mechanical integrity. (c) The use of high-strength screws in securing the structure substantially boosts column rigidity, minimizes vibrations during operation, and ensures unmatched stability even during rigorous cutting tasks. (d) By reinforcing the shaft's slint-bone structure, we significantly increase bed rigidity, providing superior processing stability and prolonging the machine tool's lifespan.
(3) Headstock
With optimized contact between the headstock and column, combined with a Taiwan short nose-end spindle, our machine delivers remarkable chip cutting capabilities. This extraordinary tool is adept at executing complex processes such as drilling, milling, tapping, and boring with impeccable precision.
(4) Precision spindle with high precision, high performance, and high stability (a) Precision-crafted in Taiwan, our spindle set boasts a masterfully engineered main shaft grab tool mechanism. The butterfly spring on the main shaft applies tension through a four-jaw broach mechanism, ensuring a perfect match with the taper hole, facilitating flawless tool operation. (b) The low inertia spindle motor, designed for optimal performance, ensures rapid acceleration, enhancing tapping speed and quality. The direct drive spindle with an orientation function guarantees exceptional performance.
(5) Machine tool protection
The lathe bed guide rail (XY axis) features robust stainless steel telescopic sheet metal, while the column guide rail (Z axis) benefits from advanced organ and armor type protection. The fully enclosed design effectively prevents escape of iron filings and coolant, ensuring a safe and comfortable environment for operators.
(6) Power distribution Beyond exceptional mechanical design, Taijing machine tools emphasize superior electrical engineering. Our CNC system is equipped with pioneering optical fiber communication, dramatically enhancing data communication speed and reducing wiring complexity for a meticulously organized electrical cabinet.

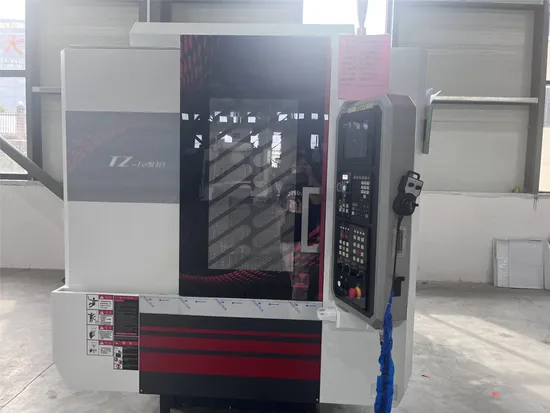

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• Step into a world of unmatched production excellence with our machine. Crafted to create the perfect processing environment, it optimizes every aspect of efficiency, elevating output quality to extraordinary levels.
Our state-of-the-art imported machinery is a beacon of precision and innovation. Equipped with the latest horizontal and vertical machining centers, CNC boring machines featuring rotating tables, and precision gantry guideway grinding machines, we ensure workpiece accuracy of the most exacting standards. This technological prowess not only enhances our assembly precision but also significantly extends the lifespan of this accuracy, reinforcing our position as trailblazers in the industry.
• Pioneering Detection Techniques
Harnessing the power of cutting-edge laser technology, we conduct meticulous testing and precise calibration of positioning accuracy. Adhering strictly to the esteemed German VDI3411 inspection standards, we perform five comprehensive tests to ensure our precision is without equal.
Every machine tool undergoes thorough and rigorous processing evaluations before leaving our facility. This guarantees that they not only meet but consistently exceed the expected processing accuracy requirements, delivering a performance that goes beyond all anticipation.
Product sample
• Experience the pinnacle of technical prowess with this state-of-the-art CNC machining center, a masterpiece of engineering excellence. Skillfully engineered to integrate the functionalities of milling, drilling, and tapping into one seamless operation, this marvel offers unmatched versatility. It ensures flawless and efficient execution of tasks across a wide array, significantly elevating your operational capabilities and setting a new standard in precision and performance.
• Step into a new era of production prowess with this expertly designed CNC machine, adept at machining an extensive range of metal profiles such as aluminum, steel, copper, in addition to non-metal materials. This exceptional machine is crafted to dramatically amplify your production capabilities, propelling efficiency and fostering groundbreaking innovation. It stands as an indispensable asset to any manufacturing process, ready to meet and exceed your expectations with its relentless performance.
• Perfectly tailored for thriving sectors like 3C electronics, rail transportation, aerospace, and linear module guide rails, this machine is your gateway to innovation. It consistently delivers unsurpassed precision, reliability, and performance, opening up new vistas of opportunity and unlocking limitless potential. Embrace the transformative power of precision engineering and drive your industry forward with this key to the future of manufacturing.
Packaging & Shipping
•Uncompromised Protection: Our expertly crafted packaging solutions ensure that the High-Performance CNC Machine for Milling Hard Metals and Alloys, BBT30 Taper, reaches you in pristine condition. We prioritize exceptional care to safeguard your valuable investment, ensuring it arrives without a scratch. Trust in our commitment to excellence and enjoy peace of mind knowing your product is in safe hands, delivered with unwavering precision.
•Robust Structural Stability: Our meticulously engineered packaging is designed to withstand the rigors of transportation, offering unparalleled stability. This ensures your CNC machine maintains its structural integrity, staying secure and intact throughout its journey to you. Experience the assurance of superior protection with our robust packaging solutions.
•Eco-Friendly and Fully Recyclable: Upholding our dedication to sustainability, our packaging materials are crafted to be eco-friendly and fully recyclable. This approach guarantees a minimal environmental footprint while delivering top-tier protection. Enjoy the harmony of ecological responsibility and superior performance with our conscientious packaging.
Professional Team
FAQ
1. What are the Payment Terms?
A: T/T, 40% initial payment when ordering, with the remaining 60% balance payable before shipment.
2. What are your trade terms?
A: We accept FOB, CFR, and CIF trade terms.
3. When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may require more time. Please place your order based on our delivery timeline.
4. What is your minimum order quantity and warranty?
A: Our MOQ is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: The machines are securely packed in standard wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us your product drawings, and we will select the most suitable machines for your needs.

---
