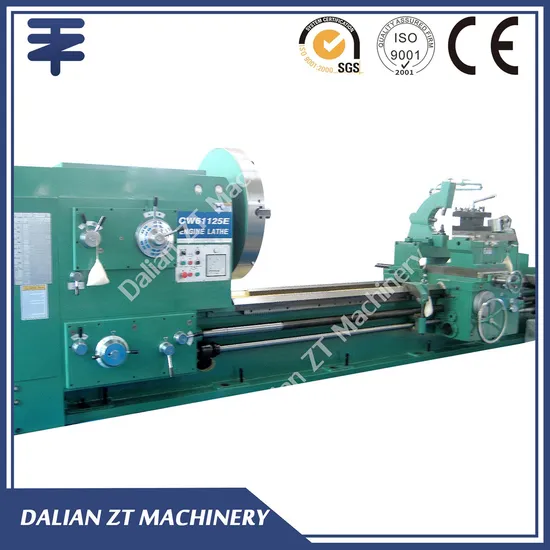

Large heavy cutting metal Horizontal CNC lathe

Product Description

Features:
Flat bed structure;high rigidity;heavy load capacity and good reliability; The rotary built-in center in the tailstock features with heavy load and is easy to operate;Rapid movement function; The model of lathe is specially suitable for the following industries: paper making, textile, rubber and shipbuilding etc..The lathe is suitable to machine large sized parts, such as disc type, rubber roller; it can also cut tread, drill hole and bore hole.

Item	CW61100E	CW61125	CW61140	CW61160
Max. swing over bed	1000mm	1250mm	1400mm	1600mm
Max. swing over gap	1250mm	1500mm	1930mm	2110mm
Max. swing over carriage	650mm	900mm	1100mm	1280mm
Max. Turning length	1500~16000mm	1500~16000mm	1500~16000mm	1500~16000mm
Max. Workpiece weight between centers	6000;8000kg	6000;8000kg	6000;8000kg	6000;8000kg
Width of bed	755mm	755mm	970mm	970mm
Spindle nose	ISO A2-15	ISO A2-15	ISO A2-15	ISO A2-15
Diameter of spindle front bearing	200mm	200mm	200/220mm	200/220mm
Diameter of spindle bore	130mm	130mm	130/100mm	130/100mm
Spindle taper	Metric No.140mm	Metric No.140mm	Metric No.140mm	Metric No.140mm
Number of spindle speeds	21 steps; manual	21 steps; manual	21 steps; manual	21 steps; manual
Spindle speed range (r/min)	3.15~315	3.15~315r/min	2.5~250r/min	2.5~250r/min
Main motor power	AC22kW	AC22kW	AC22kW	AC22kW
Tool shank section	32x32mm	32x32mm	45x45mm	45x45mm
Diameter of tailstock quill	160mm	160mm	160mm	160mm
Taper of tailstock quill	Morse No.6	Morse No.6	Morse No.6	Morse No.6
Travel of tailstock quill	300mm	300mm	300mm	300mm
Weight of machine (3m length)	10800kg	11500kg	12200kg	13200kg
Additional weight per 1 m BC	1200kg	1200	1400	1400kg
Overall dimensions of machine (3m length)	6100x1900x2000	6100x2000x2200	6360x1960x2400	6360x2060x2500

PACKING & SHIPMENT
FAQ
1. MOQ
1 set
.
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.

3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
