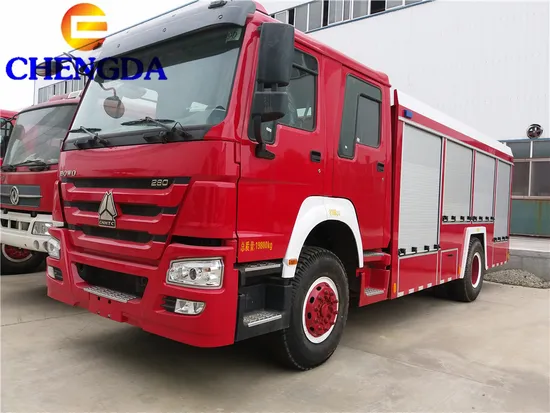

| Truck Model | ZZ1167M4611W | |
| Truck Brand | SINOTRUK-HOWO | |
| Dimension(Lx W xH)(unloaded)(mm) | 8377mm×2496mm×3048mm | |
| Wheel base (mm) | 4600 | |
| Max speed(km/h) | ≥90km/h | |
| Loading Weight(kg) | 16000 | |
| Tank capacity: | 6000kg water+2000kg B type foam | |
| Fuel tanker capacity (L) | 300 | |
| Minimum turning diameter | 17m | |
| Minimum ground clearance (under rear axle): | 260mm | |
| Engine Model | Fuel type | Diesel |
| Horse Power, max(kw/rpm) | 266hp | |
| Emission | EURO II | |
| Model | WD615.62 ,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Auxiliary brake | Egine exhaust brake | |
| Color | The main color is fireman's red with white rim outer ring. | |
| Tyre | 12R22.5 | |
| 6+1 spare | ||
| Cab | 1.Rated passengers (including driver):6 seats | |
| 2.Structure: Forward control four-door conjoined cab of all steel frame welding unibody construction. | ||
| 3.Seat set: 2 persons in front row and 4 in rear row. The rear row seats are equipped with 4 air breathing apparatus holders and suspension protective device. The safety barriers are about 1.2m high in the front. | ||
| 4.Dumping gear: double-cylinder hydraulic turnover mechanism | ||
| 5.Passenger indoor equipment: in addition to the original equipment, it is equipped with 1000W alerter, turning warning light switch, PTO switch, attached light switch and indicator light. | ||
| 6.Alarm lamp: a lightbar is mounted on the top of the cab. | ||
| Tank | Tank capacity | |
| Water tank carrying capacity: 6000kg | ||
| B type foam tank capacity: 2000kg | ||
| Material | ||
| The water tank is welded together by high quality carbon steel (high-tech anti-rot material with guarantee period of 10 years). | ||
| The foam tank is welded together by high quality carbon steel (high-tech anti-rot material with guarantee period of 10 years). | ||
| Structure of water tank: The water tank is of welded structure. The front and rear close plates, its two side walls and the vertical and horizontal shifting plates are all equipped with trapezoid ribs to increase strength. There is also maintenance manhole and anti-absorbing water vortex turbulence structure. | ||
| There is one inlet opening on the top of the tank. The tank cover has quick locking and opening device. | ||
| There is one 80mm overflow tube valve structure on the tank top. | ||
| One fluid level indicator | ||
| One drain outlet | ||
| Structure of B type foam tank | ||
| One B type foam filling port is on the tank top. | ||
| One air outlet is on the tank top. | ||
| One drain outlet is at the bottom of the tank. | ||
| One fluid level gauge | ||
| Pipeline system | (1),Water absorption pipeline: | |
| One Φ150mm in-tank water absorption pipeline system. | ||
| One Φ150mm outer water absorption pipeline system. | ||
| (2),Foam pipeline: | ||
| The foam feed pipe is stainless steel tube laying in the tank. | ||
| (3),Water injection pipeline | ||
| There are two Φ80mm buckles on both left and right sides of the carriage to the water injection pipeline in the tank. | ||
| There is one Φ65mm water pump in the pump room to the water injection pipeline and control valve in the tank.(4)Water outlet pipeline: | ||
| There is one 100mm water outlet fire monitor pipeline and control valve. | ||
| There are two Φ80mm water outlet pipelines and control valves on both left and right sides of the pump room. | ||
| (5),Residual water draining pipeline: | ||
| There is one Φ18mm residual water draining pipeline and control valve on the bottom of the water pump. | ||
| (6),Cooling water pipeline: | ||
| Cooling water pipeline and stainless steel ball valve are equipped tor PTO to deal with all kinds of complicated situations. | ||
| (7),Blow-off line | ||
| There is one Φ40mm blow-off line and control valve at the bottom of the water tank. | ||
| There is one Φ40mm blow-off line and control valve at the bottom of the foam tank. | ||
| PTO | Type: Sandwich type | |
| Operation: the magnetic valve, air control and control position are on the dash board in the cab with indicator lamps to show engagement and disengagement of PTO. | ||
| Cooling mode: forced adjustable water cooling. | ||
| Lubricating method: splash lubrication | ||
| Storage compartment and pump room | Material: The main skeleton is of steel sectional material and the equipment rack is of Luminal alloy sections. The interior plates are made of 1.5mm aluminum alloy checkered plate and the interior bottom plate is of 2.5mm aluminum alloy checkered plate. | |
| Structure: Adopting steel frame and special connection structure of Luminal alloy section, the storage compartment has enough space to place equipment; the partition space is adjustable to place equipment and easy to access. Valves are installed at proper position in the carriage for parts to be frequently checked; open or movable plates are also installed at other positions in the carriage for inspection. | ||
| Rolling door: All storage compartments and pump chambers adopt rolling doors with locks. The handles and locks are sturdy and durable, and they all have passed the water sealing test. | ||
| Turning plate pedal: it is of steel frame covered with Luminal alloy checkered plates and adopts air spring, safe and reliable. | ||
