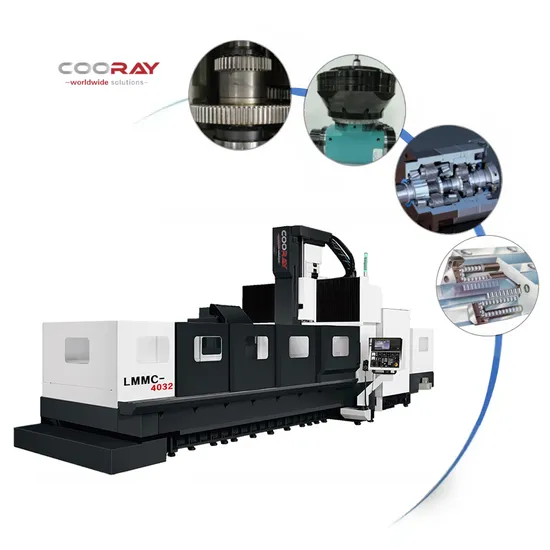

Cooray Cr-Vmc Gantry Machining Center Vertical Machining Center

US$50,000.00-90,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GANTRY MACHINING CENTER
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Condition
New
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Energ
Key Selling Points
High Productivity
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Transport Package
The Two Sides Negotiate Logistics.
Specification
24000*5700*5200
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000

Packaging & Delivery

Package Size
2400.00cm * 570.00cm * 520.00cm
Package Gross Weight
105000.000kg

Product Description

Product Description
Machine data/model Unit LMMC-1210 LMMC-2013 LMMC-2015 LMMC-2018/3018 LMMC-3022 LMMC-3025 LMMC-3029 LMMC-4032 LMMC-4042
X-axistravelrange mm 1200-2000 2000-3500 2000-4000 2000-4000 3000-6000 3000-6000 3000-8000 4000-10000 4200-12000
Y-axistravel mm 1000 1300 1500 1800 2200 2500 2900 3200 4200
-axis travel mm 800 800 800 1000 1000 1000 1000 1250 1500
Distance fromspindlenose to table surface mm 150-950 70-870 115-915 250-1250 250-1250 260-1260 260-1260 350-1600 350-1850
Gantrywidth mm 1100 1300 1500 1800 2200 2500 2900 3200 4200
XIY/ZThree-axisguide rail Three-axis linerail/Z-axis optional hardrail Three-axisline rail/Z-axis optional hard rail Three-axis linerail/Z-axis optionalhardrail XYaxisline rail,Z-axishardrail XYaxisline rail,Z-axishardril XYaxisline rail,Z-axishardril XYaxislinerail,Z-axishardrail XYaxis line rail,Z-axishardrail XYaxisline rail,Z-axishardril
Workbench size mm 900×(1400-2200) 1000×(2000-3500) 1200×(2000-4000) 1600×(2000-4000) 1800×(3000-6000) 2300×(3000-6000) 2500×(3000-8000) 2500×(4000-10000) 3200×(4000-12000)
Maximum load-bearing of the workbench T 1.6-2.4 3-6 3-6 4-8 6-15 10-18 16-25 18-25 30-50
WorkbenchT-slot(numberofslot-size×spacing) mm 7-22×125 7-22×150 7-22×170 9-22×180 9-22×180 11-28×200 12-28×200 13-28×200 15-28×200
Spindle taper specifications BT40/BT50 BT40/BT50 BT40/BT50 BT50 BT50 BT50 BT50 BT50 BT50
Spindle speed(Optional) rpm/mm 8000/10000/12000 6000/8000 6000/8000 6000 6000 6000 6000 6000 6000
Spindle drivemode Direct/belt Direct/belt Direct/belt Belt Belt Belt Belttype Belt Belt
Spindle motor power kw 11/15 15/18.5 18.5/22 18.5/22 22 22 22 30 30
Three-axis motor power(X/Y/Z) kw 3/3/4 4/4/4 4/4/4 7/7/7 7/7/7 9/9/9 9/9/9 9/9/9 9/9/9
-axisclump weight mode Hydraulic balance Hydraulic+
hydrogen balance		 Hydraulic+
hydrogen balance		 Hydraulic+
hydrogen balance		 Hydraulic+
hydrogen balance		 Hydraulic+
hydrogen balance		 Hydraulic+
hydrogen
balance		 Hydraulic+
hydrogen
balance		 Hydraulic+
hydrogen balance
X/Y/Zaxis rapid moving speed m/min 20/20/16 16/16/16 12/12/12 8/8/8 8/8/8 8/8/8 8/8/8 8/8/8 8/8/8
Cutting feed speed m/min 0-10000 0-10000 0-10000 0-70000 0-70000 0-70000 0-70000 0-70000 0-70000
Position accuracy mm JIS±0.005/300 JIS±0.005/300 JIS±0.005/300 JIS±0.005/300 JIS±0.005/300 JIS±0.005/300 JIS±0.005/300 JIS±0.005/300 JIS±0.005/300
Repeated position accuracy mm JIS±0.003/300 JIS±0.003/300 JIS±0.003/300 JIS±0.003/300 JIS±0.003/300 JIS±0.003/300 JIS±0.003/300 JIS±0.003/300 JIS±0.003/300
Pressure demand Kg/cm² ≥6 ≥6 ≥6 ≥6 ≥6 ≥6 ≥6 ≥6 ≥6
Machine weight T 11.5-15 22-28 26-31 27-35 37-53 48-68 54-72 70-105 102-163
Machine size (length x width ×height) m (3.6-5.8)×2.6×3.3 (7-11)×2.8×3.4 (7.5-13)×3.2×3.4 (6.8-12)×4.2×4.5 (8.5-14)×4.6×4.5 (8.5-15)×5×4.5 (11-20)×5.4×5.2 (12-24)×5.7×5.2 (12-28)×6.7×5.8
