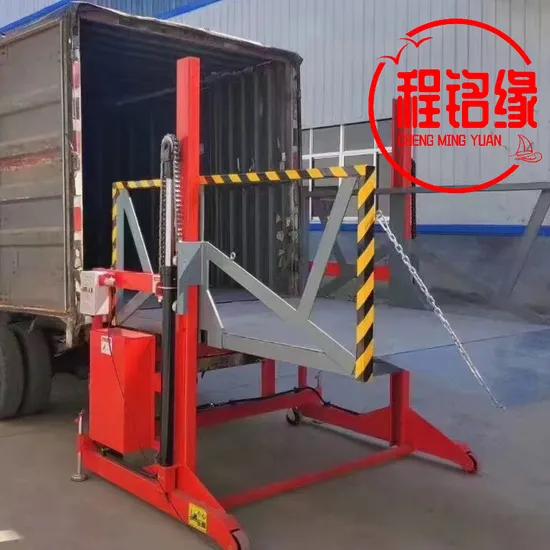

Heavy-Duty Cargo Lifting Platform for Efficient Loading Solutions

Product Description

Product Description
Self-Elevating PlatformProduct performance:
Capacity range from 300kg to 2000kg,lifting heigh at 4m,6m,8m,10m,12m~18m.Control form:Upper and lower controls. Control part of the installation of safety emergency stop, in order to maximize the protection of property and personal safety. A 36V safety control voltage is used for each operation part Pump station:Special hydraulic pump station lifting operation platform. With the emergency drop valve, the overflow valve can prevent the high system pressure and play the protection function Rust removal treatment:Thblasting, sandblasting and rust treatment; remove the corrosion and splash of steel structure members to uneven the surface of steel members and increase the adhesion of powder Spray treatment:Use electrostatic powder spraying; excellent coating appearance quality, strong adhesion and mechanical strength, high color brightness, lasting fading.
PRODUCT DETAILS ELEVATED GUARDRAIL
Height of 1 mater
Detachable/safe operation
SCISSOR FORK BRACKET
Adopting national standard
high-quality steel
SUPPORTING LEG
High strength manganese
steel rectangular tube
PRODUCT FEATURES

With well designed manual towingpole,it is convenient to move thelift by people. Four supporting legs,Ensure safety	Control Panel There are two ways for operation:platform control with the controllerand ground control with controlbox

High strength Q345 steel is ap-plied for this structure.	Motor and oil tank is combinedtogether,with emergency de-scending valve.

Product Paramenters

Model	Table size	Platform capacity	Platform height	Dimension(L*W*H)	Weight	Power source
SJ-0.5-4	2.1*0.83m	500kg	4m	2.25*0.95*1.1m	800kg	1.1kw/220v
SJ-0.5-6	2.1*0.83m	500kg	6m	2.25*0.95*1.2m	880kg	1.1kw/220v
SJ-0.5-8	2.1*0.93m	500kg	8m	2.25*1.06*1.38m	1050kg	1.5kw/220v
SJ-0.5-10	2.1*1.23m	500kg	10m	2.25*1.35*1.53m	1360kg	2.2kw/380v
SJ-0.5-12	2.5*1.53m	500kg	12m	2.79*1.67*1.75m	2260kg	3kw/380v
SJ-0.5-14	2.8*1.53m	500kg	14m	3.06*1.73*1.81m	2486kg	3kw/380v
SJ-0.3-16	2.8*1.6m	300kg	16m	3.06*1.81m*2.08m	3063kg	3kw/380v
SJ-0.3-18	3.07*1.6m	300kg	18m	3.321*1.81*2.08m	3900kg	3kw/380v
SJ-1.0-4	2.1*1.2m	1000kg	4m	2.25*1.35*1.18m	1250kg	2.2kw/380v
SJ-1.0-6	2.1*1.2m	1000kg	6m	2.25*1.35*1.3m	1400kg	2.2kw/380v
SJ-1.0-8	2.1*1.2m	1000kg	8m	2.25*1.35*1.42m	1585kg	2.2kw/380v
SJ-1.0-10	2.1*1.2m	1000kg	10m	2.25*1.35*1.53m	1700kg	3kw/380V
SJ-1.0-12	2.5*1.5m	1000kg	12m	2.25*1.35*1.53m	2900kg	3kw/380v
SJ-1.0-14	2.8*1.6m	1000kg	14m	3.06*1.81*1.9m	3230kg	3kw/380v
SJY1.5-6	2.1*1.5m	1500kg	6m	2.25*1.75*1.53m	1780kg	3kw/380v
SJ-1.5-8	2.1*1.5m	1500kg	8m	2.25*1.75*1.69m	2070kg	3kw/380v
SJ-1.5-10	2.1*1.5m	1500kg	10m	2.25*1.75*1.85m	2550kg	3kw/380v
SJ-1.5-12	2.5*1.5m	1500kg	12m	2.79*1.76*1.85m	2900kg	3kw/380v
SJ-1.5-14	2.8*1.6m	1500kg	14m	3.04*1.85*1.96m	3400kg	4kw/380v

Our factory
We are located in southeast coastal city Qingdao of Shandong Province in China! As a costal city which is famous of rich tourist resources and beautiful natural environment . In recent years, the Qingdao municipal government attaches great importance to the development of tourism, constantly increase investment, optimize the tourism environment, strictly restrict the high energy consumption, high pollution industries, many production enterprises have to move to other provinces. Now Cheng Ming Metal Technology (Shandong) Co., Ltd. Is focus on importing and exporting goods, providing service for downstream shareholder companies as Hebei Weiyu Conveying Machinery Co., LTD., Hebei Zhongchengtongchuang Integrated Housing Co., LTD., Shandong Jin Guang Group and Qingdao Ever Fortune Industrial Products Co., LTD.
