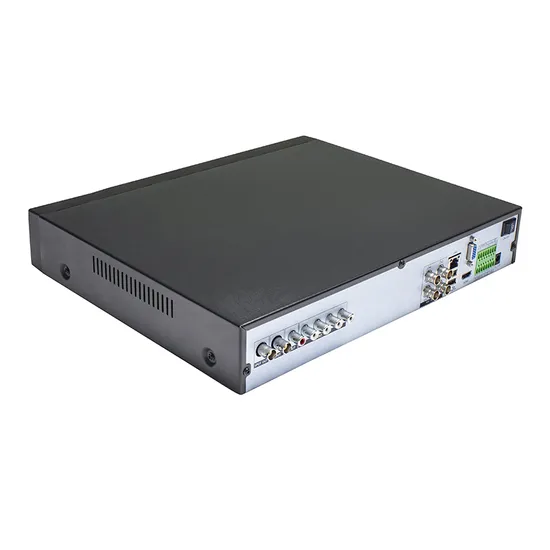

Vrs-DVR-SDI-4 4 Channel HD-SDI Digital Recorder

Product Description

Product Description VRS-S8004
HD-SDI 4-channel HD-SDI Digital Recorder
Overview:
The recorder boasts a comprehensive protection circuit and an exclusive triple watchdog function, guaranteeing operational stability without any crashes. Its unique black box technology enables monitoring of the entire equipment process, leading to a substantial reduction in maintenance costs. Additionally, it simultaneously supports HD VGA and HD HDMI outputs, setting a new benchmark in technological trends. Both VGA and HDMI interfaces support 1080p HD output, demonstrating a dedication to delivering true HD resolution. Furthermore, the compression algorithm has been upgraded to H.264, and the advanced High Profile spatio-temporal filtering technology further reduces the code stream by over 30%.
4-channel 1080P video input + 4-channel 1080P IPC
4-channel 1080P playback
4-channel audio input/output
4-channel alarm input/1-channel alarm output
Support multiple recording modes, such as manual recording, timing recording, motion detection recording, and alarm recording.
Support Apple and Android APP control, and support network remote control of the DVR.
Support 2 SATA hard disk interfaces (single disk supports up to 3TB).

Model	VRS-S8004
CPU	ARM Cortex A9 dual core, 930MHz
Memory	DDR3 1GB (standard, optional 2G)
Hard disk drive	Two SATA interfaces, pull hard disk, support more than 8 TB of hard disk space in total; (optional)
Network interface	1x 10/100/1000 Mbps
Video input/output	Input: 4-channel HD-SDI input Output: 1xHDMI (1920x1080p60), 1x VGA (1920x1080, 60Hz)
Audio input/output	4 inputs, 1 output (supports bidirectional audio)
USB interface	3 USB 2.0, 1 front panel, 2 back panel
RS-485	Pelco D,Pelco P,Samsung,Transparent
Alarm I/O	4-channel alarm input, 1-channel alarm output (all 4-channel output can be selected)
Control mode	USB Mouse/Remote Control/Browser/user platform
Power supply	AC220V
Weight (without hard drive)	Net Weight 1.75 Kg
Size	375mm (W) x260mm (L) x50mm (H)
Work environment	0°C~40°C; 20~80%
Software parameters
Video
Video encoding resolution	Up to 1080p 30/s/channel, up to 10 Mb/s/channel stream can be set
Video compression standard	H.264 HP/MP/BP (with dual streams)
Video settings	Resolution, quality, frame rate
Dual code stream	Supported
Total bit stream	4 channels support 40Mb/s in total
Display mode	Full Screen/Multisplit/Picture-in-Picture/Round Robin
Video recording mode	Continuous, Scheduled, Alarm, Motion Detection
Video encoding capability	Up to 480 frames Full HD (1920x1080)
Pre-video	5 seconds
Postpone the video	Can be set for more than 300 seconds
Network transmission	Supports 1080P
Synchronous playback	Support 4-channel real-time playback, support 4-channel 1080P real-time playback
Digital amplification	Supported
Watermark function	Supported
Video query	Date/Time/Alarm
Data backup	Support AVI format via USB/Web
Mobile Terminal	Support; iOS, Android,
Support agreement	TCP/IP,SMTP,DHCP,DDNS,PPPoE,UDP,SSL,RTP,RTSP,NTP
Operating System	Embedded Linux
Operation interface	GUI graphical operation interface

---
