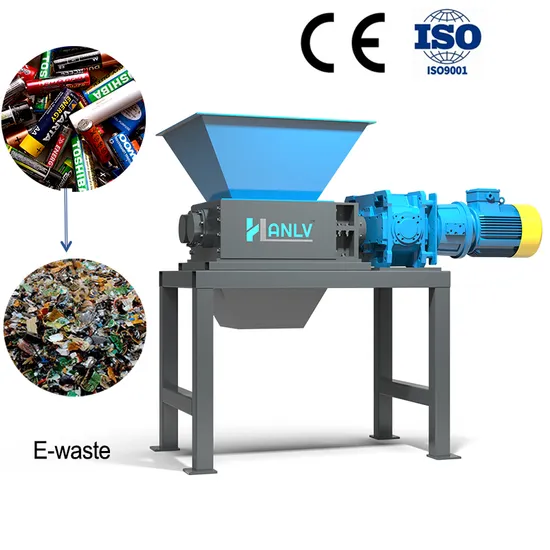

Double Shaft Shredder for E-Waste Lithium Battery PCB Board Plastic Metal Recycling

Product Description

Product Description Product Introduction
The Double-Shaft Shredder is a widely used industrial shredder with low speed, high torque and high throughput, designed to efficiently process a wide range of materials. It can be equipped with different components or work with other stages of shredders depending on the material and final size, reducing the material to the required size.
The double-shaft shredder is a relatively extensive shredding machine, suitable for the preliminary processing of many materials. Based on the nature of the material and the required output, the power required can be initially estimated. Generally speaking,it is divided into single motor and dual motors.
Single motor is suitable for fragile materials with low power requirements. Dual motors are equipped with dual reducers, and ZSY or planetary reducers can be selected according to needs.
It is characterized by fast discharging and high efficiency, which can meet general crushing needs.
HLV has designed different ranges of double-shaft shredders for common applications with different components (reducers, blade sets, etc.) to guarantee a wide range of material adaptability. At the same time, we have the ability to custom-built machines to suit specific material and input/output requirements.

This article starts with the Double shaft shredder- Single motor.
Which Materials can be Processed?
The shredder machine can easily pre-crush:1.plastic sheets;2.electronic waste;3.scrap (components, subassemblies; consumables);4.metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes);5.aluminum cans;6.wood(wooden pallets or fruit boxes);7.plastic(plastic bottles or canisters);8.waste tire, rubber;9.waste household appliances;10.paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material);11.textiles (rags, garments, carpet);12.animal bones and organic waste.
Product Highlights
1. heavy knife, high crushing efficiency, knives are made of alloy steel casting, solid and long service life.
2. frame plate thick, resistant to high torque, very strong.
3. microcomputer (PLC) automatic control, set to start, stop, reverse and overload automatic reverse control.
4. The device has a low speed, high torque, low noise, dust features can meet environmental standards.
5. easy to adjust, low maintenance, economical and durable.
6. thickness and number of claw cutter knife can be replaced according to different materials.
Technical Data Technical Parameters

Model	Motor Power (KW)	Crushing Chamber (mm)	Blade Dimension (mm)	Rotation Speed (rpm)	Machine Dimension (mm)
HLD-350	5.5/7.5	450*350	φ235*10/20	27	1320*800*1800
HLD-505	15/18.5	550*500	φ280*20/30	18	2240*1050*2020
HLD-608	22	640*800	φ300*20/30	12~20	2500*1120*2230
HLD-710	30	690*1000	φ330*30	12~20	2510*1865*2550

Product Details
Discharge Effect
FAQQ:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
A: HANLV has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q:Could We Visit Your Factory and Test the Machine?
A: We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
Packaging & Delivery
Customer Feedback
Company Profile Company Profile
Hanlv is a new type of enterprise integrating R&D, manufacturing, sales and service of solid waste treatment equipment. In particular, it has extensive experience in metal recycling and plastic&wood &Tire crushing.
Hanlv has many years of experience in the solid waste recycling industry, and its equipment is sold in many countries around the world. Reliable equipment quality is our philosophy.
What do customers need?----This question has always kept us going.
Workshop View
Project Case
Contact us
We will be happy to advise you.

---
