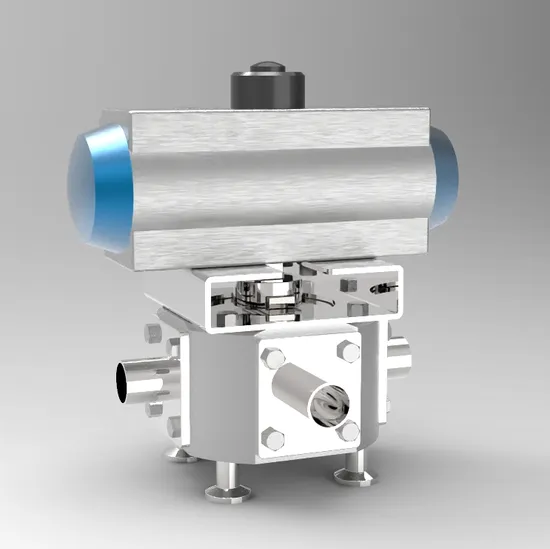

Four Way Reversing Valve with CIP Solution for Sanitary Applications/Pneumatic Valve/Diverter Valve/Stainless Steel Valve/Valve/Diverter 2inch

Product Description

Product DescriptionFour-Way Diverter Valve with Optional CIP Cleaning
This valve is designed for product transfer processes that require switching between two sources and two destinations. It maintains two continuous flow paths and simultaneously switches between them by rotating the valve core.
Key Features:
Simultaneous Flow Path Switching: Both flow paths switch simultaneously when the valve core rotates.CIP Cleaning Capability: Optional CIP cleaning function allows for thorough cleaning of the valve cavity with CIP solution, meeting the stringent hygiene requirements of product recovery systems.Versatility: Suitable for both product transfer and recovery processes.Compact Design: Compact design for easy installation and space saving.Applications:
Food and Beverage: Transfer and recovery of liquids and semi-solids such as juices, milk, and sauces.Pharmaceutical: Transfer and cleaning of pharmaceutical intermediates and finished products.Chemical: Transfer and recovery of various chemicals.Other Hygiene-Sensitive Industries: Such as biopharmaceuticals and cosmetics.Working Principle:
The flow direction is changed by rotating the valve core, allowing for quick switching between two flow paths. For CIP cleaning, cleaning fluid is introduced into the valve cavity through a specific pipe from the bottom to thoroughly clean the inner wall of the valve.
Product Specifications
Pressure Range: 0-10 barTemperature Range: Above 0°C to 100°CBody Material: 304, 316L stainless steelSealing Material: PTFE between valve body and valve coreOther: EPDM; Optional: VMQ, FKM, FFKM, NBRProduct ParametersLow residue four-way reversing valve (SUS316L) - ISO series

Part Nr.	Size	A(mm)	B(mm)	C(mm)	D(mm)
VPPFFBAT025A-F1	1"	130	211	Φ25.4*1.5	215
VPPFFBAT032A-F1	1.25"	147	220.3	Φ31.8*1.5	215
VPPFFBAT038A-F1	1.5"	165	232	Φ38.1*1.5	215
VPPFFBAT051A-F1	2"	200	275	Φ50.8*1.5	252
VPPFFBAT064A-F1	2.5"	255	315.3	Φ63.5*2.0	285
VPPFFBAT076A-F1	3"	304	331	Φ76.1*2.0	285
VPPFFBAT089A-F1	3.5"	316	363	Φ88.9*2.0	316
VPPFFBAT102A-F1	4"	364	379	Φ101.6*2.0	316
VPPFFBAT127A-F1	5"	450	439	Φ127.0*2.0	354
VPPFFBAT152A-F1	6"	530	494	Φ152.4*2.0	418

Low residue four-way reversing valve (SUS316L) - DIN11850 second piping series

Part Nr.	Size	A(mm)	B(mm)	C(mm)	D(mm)
VPPFFBAD025A-F1	DN25	130	211	Φ29*1.5	215
VPPFFBAD032A-F1	DN32	147	220.3	Φ35*1.5	215
VPPFFBAD040A-F1	DN40	165	232	Φ41*1.5	215
VPPFFBAD050A-F1	DN50	200	275	Φ53*1.5	252
VPPFFBAD065A-F1	DN65	255	315.3	Φ70*2.0	285
VPPFFBAD080A-F1	DN80	304	331	Φ85*2.0	285
VPPFFBAD100A-F1	DN100	364	379	Φ104*2.0	316
VPPFFBAD125A-F1	DN125	450	439	Φ129*2.0	354
VPPFFBAD150A-F1	DN150	530	494	Φ154*2.0	418

Company ProfileHygienic Pigging System and Solutions -Professional SupplierHYPERFORE is an experienced manufacturer of hygienic pigging system in China. We were established in 2005. And the product recovery systems we design and manufacture are manual, automatic, sanitary and aseptic. At the same time, we also provide hygienic pigging system solutions for all kinds of industries.Hyperfore has been engaged in high-quality recovery pigging system research and development. Meanwhile, we continuously update the pigging technology. Our pigging products like pigging stations and sanitary pigs are cost-effective. And they meet customers' special requirements.Nowadays, we are so honored to provide our high-quality and economical product recovery systems and services to the global clients. Meanwhile, these clients are active in various industries. For instance, dairy products, beverage, edible oil, pharmaceutical, cosmetics, cleaning liquid, hotpot sauce, lithium battery slurry, paint and coatings, curry sauce and any liquid product that is pumped and transferred in pipeline.Hyperfore is a professional and responsible company.Because our most important goal is to raise customers' competitiveness. Certainly, the interests of our customers are what we care most.Our AdvantagesHyperfore has extensive experience in pigging system solutions. We boast a professional technical team, excellent after-sales service, fast delivery, professional industry certificates, and numerous successful cases.
Hyperfore provide high quality, advanced pigging system(liquid product recovery system), customized pigging solutions for sanitary, hygienic process applications.
Our proven pigging solutions are widely used in hygienic and sanitary applications such as food, sauce,dairy, beverage, candy, liquid detergent, shampoo, toothpaste,chemicals, pharmaceuticals, paints and coatings and so on.
We provide both pigging projects and liquid product recovery products such as pigging system, pipeline pigs, special valves, pig detection unit, pigging system control and automation, operation training and much more.
We provide high quality spare parts with high levels of technical service and support. Packaging & ShippingFAQ1. What is a pigging system for paint and coating industry?
In the paint or coatings industry, a double pigs pigging system is a specialized equipment that uses two pigs with a solvent in between. The first pig is used to push out any remaining paint in the pipeline, while the solvent in the middle dissolves paint or coating residues on the pipe walls. The second pig then scrapes off the dissolved paint or coating, enhancing the cleaning and product recovery process. The double pigs system optimizes paint recovery, reduces waste, and minimizes downtime during product changeovers. It ensures thorough cleaning, avoiding color mixing or cross-contamination between different paint batches. The use of the double pigs system improves production efficiency, enhances paint quality, and promotes a more sustainable and cost-effective operation in the paint industry.
2. What is the pigging system ROI?
The ROI of a pigging system is determined by comparing the initial investment (cost of the system implementation) with the financial benefits gained over time. These benefits include reduced product loss, increased production efficiency, and minimized downtime. Normally you can gain back your investment of implementation a Hyperfore pigging system within one year.
3.How does a pigging system work?
A pigging system works by using a specialized device called a "pig" to clean, recover product, or inspect pipelines. The pig is inserted into the pipeline and propelled by the product or a separate propellant. It cleans the pipeline walls, recovers residual product, and can perform various tasks, improving efficiency and reducing waste.
4.What is a piggable reversing valve?
The Piggable Reversing Valve rotates 120° between two ports to allow non-obstructed product transfer and no pressure loss. This can be from one source to two selectable positions, or from two selectable product sources to one destination.

---
