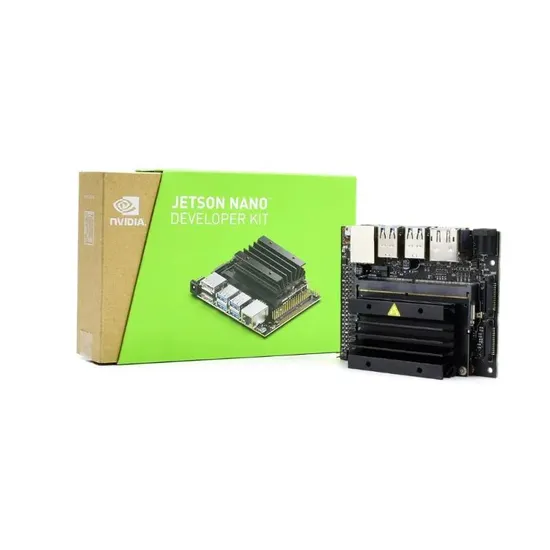

Jetson Nano Developer Kit (B01) Upgraded 2-Lanes Csi

Product Description

DESCRIPTION

NVIDIA Jetson Nano Developer Kit, New B01 Revision, Upgraded 2-lanes CSI, Small AI Computer Jetson Nano Developer Kit Upgraded B01 Ver. The New B01 Revision Released At Early 2020 By NVIDIA, Upgraded Functionality
Supports 2-Lanes CSI Camera Upgraded 2-Lanes CSI, Instead Of The Previous 1-Lane, Easily Play Around With Binocular Vision
Either Jetson Nano OR Jetson Xavier NX The New Designed Carrier Board Is Compatible With
Either Jetson Nano OR Jetson Xavier NX
Convenient For Hardware Upgrading
Introduction Specifications GPU CPU MEMORY STORAGE VIDEO ENCODER VIDEO DECODER CAMERA CONNECTIVITY DISPLAY USB EXTENSION INTERFACES

128-core Maxwell

Quad-core ARM A57 @ 1.43 GHz

4 GB 64-bit LPDDR4 25.6 GB/s

micro SD card (NOT included. Recommendation: Micro SD Card 16GB)

4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)

4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)

2x MIPI CSI-2 DPHY lanes

Gigabit Ethernet, M.2 Key E expansion connector (Recommendation: AC8265 Dual-mode NIC)

HD-MI and DP

4x USB 3.0, USB 2.0 Micro-B

GPIO, I2C, I2S, SPI, UART

NVIDIA Official Partner As An NVIDIA Official Authorized Partner, Waveshare Is Capable Of Providing Genuine Products And Reliable Tech Support


PACKAGE CONTENT
Weight: 0.238 kg
Jetson Nano Developer Kit (B01) x1

---
