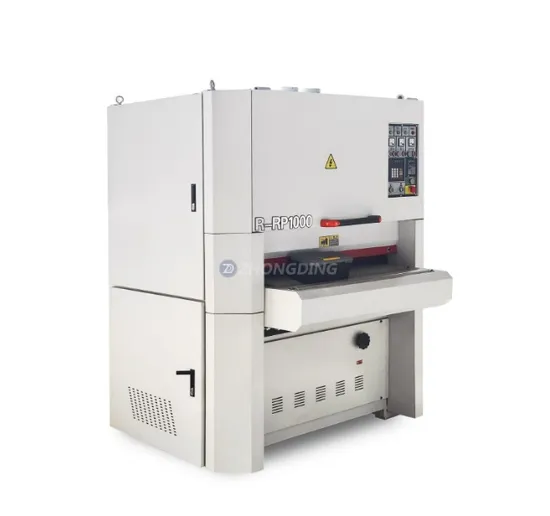

High Precision 1000 mm Wood Floor Automatic General Calibrating Wide Belt Sanding Machine for Woodworking

Product Description

Product Description
The high precision automatic general calibrating wide belt sanding machine is mainly used for surface sanding and fixed thickness sanding , suitable for timber , wood panels , block board , plywood , plywood , insulation panels , insulation materials , calcium silicate board , fiberboard , and other products .
Detailed Photos
Easy operated control panel:
The digital readout is used to set the conveyor table height, and 2 sanding rollers switch, and up and down button for manual adjusting,conveyor table switch.

Conveyor belt:
Conveyor belt height can be adjusted on the control panel, up and down to fit for different thickness wood boards.
The reducer is used to adjust the conveyor speed.
R-RP sanding unit:
1st roller is steel sanding roller is used to calibrating sanding, removing amount up to 0.5mm.
2nd one is combined structure, left one is rubber roller and right steel roller, plus sanding pad, to do fine polishing.
These two sanding rollers are both mounted on the heavy duty cast iron structure, highly reduce the noise and more stable when working.
Electric box:
CHNT, DELIXI Brand electric parts.
They are all top brand with nice quality and longer lifetime to make sure the machine work smoothly.


Product Parameters

Model	ZDR-RP1000	Size of sanding belt	1020*2020mm
Max working width	1000mm	Main motor power	15kw,11kw
Material thickness	2.5-120mm(option 2.5-160mm)	Total power	28.94kw
Min. Working length	350mm	Working air pressure	0.55mpa
Feeding speed	6-30m/min	Volume of dust collecting	5000m³/h
1# sanding belt speed	18m/min	Speed of dust collecting	25-30m/s
2# sanding belt speed	12m/min	Weight	2000kg
Overall dimension (L*W*H)	1700*1400*2050mm

Here are some related sanding machine's parameters compared with ZDR-RP1000:

Model	ZDR-RP630	ZDR-RP1000	ZDR-RP1300
Max working width	630mm	1000mm	1300mm
Material thickness	2.5-120mm	2.5-120mm(option 2.5-160mm)	2.5-120mm(option 2.5-160mm)
Min. Working length	350mm	350mm	350mm
Feeding speed	6-30m/min	6-30m/min	6-30m/min
1# sanding belt speed	18m/min	18m/min	18m/min
2# sanding belt speed	14m/min	12m/min	12m/min
Size of sanding belt	650*1900mm	1020*2020mm	1320*2020mm
Main motor power	11kw,7.5kw	15kw,11kw	37kw,22kw
Total power	20.74kw	28.94kw	56.74kw
Working air pressure	0.5mpa	0.55mpa	0.55mpa
Volume of dust collecting	5000m³/h	5000m³/h	5000m³/h
Speed of dust collecting	25-30m/s	25-30m/s	25-30m/s
Overall dimension (L*W*H)	1700*1100*2050mm	1700*1400*2050mm	2750*2200*2050mm
Weight	1300kg	2000kg	3200kg

Our Advantages
Steel roller go up and down, partial sanding easy to adjust, the fixed thickness thick roller with thicker adhesive layer to improve the accuracy of sanding.
Has the fault displaying function, maintenance more convenient,If problems happen, the device is powered down.

Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers. About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you.
Certifications

Our Customers

FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?Our machines have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sliding table saw,CNC beam saw machine, wood drilling machine, CNC router ,vacuum laminating machine, sanding machine, hot press machine and so on can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese , English , Español , Português , Français , Русский язык , Italiano , Deutsch , Nederlands and so on .

---
