Laser Hardening/Quenching Machine Laser Heat Treatment Equipment Factory Price

Product Description

Laser Hardening/Quenching Machine Laser Heat Treatment Equipment Factory Price
Feature of Laser Hardening Machine
High power lasers are widely used in cladding
applications because of their high robustness, high reliability,
and especially high efficiency, all of which contribute
to markedly lower operating costs.

We can offes cladding / hardening workstations comprising Class1
Turnkey Laser Processing Workcell, a laser, loading/unloading Automation, powder feeding unit, claddingprocessing head
and PLC control system.

In addition to the standard specifications,We can offers custom cladding solutionsconfigured to meet your process need.
Product Description

MODEL	RFL-A3000D
Laser parameter
output power W)	3000
work model	continuous
polariszation	at random
power adjustment(%)	10~100
wave length(nm)	915±10
output unstablility(%)	<3
Rate(Hz)	50~5k
red light point power(mW)	0.25~1
laser head parameters
output head mode	QBH
fiber core(μm)	600
Min bend semidiameter(mm)	≥400
Half angle of beam divergence(rad)	≤0.22
fiber length(m)	20
electronic parameters
Voltage	AC380V±38V,50/60Hz,
control mode	RS-232/AD
other parameters
size (W×H×D)(mm)	650×950×980
weight(Kg)	<150
temperature(ºC)	10~40
Hunidity(%)	<70
storage(ºC)	-10~60
Cooling	Water cooling
Power consumption	22KW

1. Product introduction
a, The laser beam quality is excellent, the quenching speed is fast, and the surface is firm and beautiful, bringing users an efficient and perfect quenching solution;

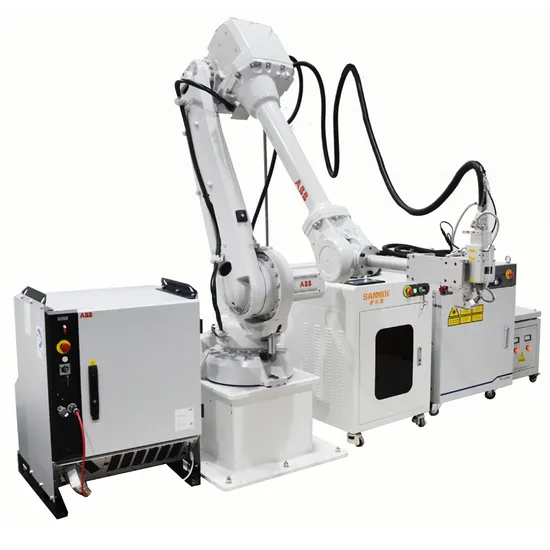

b, Controlled by ABB manipulators, the workpiece can move on a plane trajectory, and can move in any plane graphics composed of points, straight lines, circles, squares, or straight lines and arcs;
c, High electro-optical conversion rate, low energy consumption, long-term use can save users a lot of processing costs;
The equipment has high reliability and can be processed continuously and stably for 24 hours to meet the needs of industrial mass production and processing;
d, Special aircraft customization capabilities are strong, and exclusive models can be tailored to customer needs.
2. Performance advantages: 1. Fast speed, high precision and exquisite appearance;2. Will not cause deformation of precision products;3. Wide scope of application;4. It can be welded and repaired directly after quenching.

---
