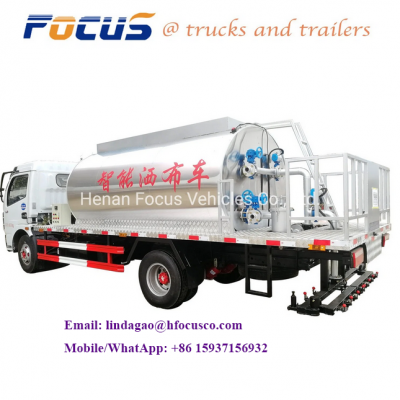

FOTON 4X2 6X4 Hot Oil asphalt spraying distributor machine bitumen spreader truck for Africa
Description of Asphalt distributor truck
The intelligent asphalt distributor is an automatic product for professionally spraying emulsified asphalt, diluted asphalt, hot asphalt and modified asphalt. The product controls the entire process of asphalt spraying through the controller, so that the amount of asphalt spraying is not affected by changes in vehicle speed and can be sprayed with high precision. It is mainly used in the construction and maintenance of highways, highways of various grades and municipal roads, and is suitable for the spreading construction of asphalt of different grades of pavement such as penetration layer, adhesive layer, and upper and lower sealing layers.
1. The optimized design of the asphalt tank heating system has fast temperature rise and good thermal insulation performance;
2. Folding spray beam, high precision of asphalt spraying, can realize three overlapping spraying, good uniformity and easy operation;
3. The intelligent control system can realize automatic spraying only by setting the amount of asphalt spraying per square meter;
4. The touch-screen display in the cab can display and record the asphalt spraying area, working distance and total spraying amount in real time;
5. Start strong spray control technology to achieve zero start spray;
6. Two sets of operating systems, automatic and manual, are easy and reliable to operate;
7. The heat transfer oil heating system can heat the asphalt tank, asphalt pump, asphalt pipeline and spray beam in all directions;
8. Equipped with a hand-held spray gun, which can locally spray the corners of the road;
9. Diesel oil and compressed air dual cleaning system, easy to clean up the residual asphalt in the pipeline after construction.
Spreading width: 4500-6000mm
Asphalt spreading amount: 0.2~3.0L/m2
Heating method: Italian imported diesel burner heating (100,000 kcal/hour)
Spraying medium: hot asphalt, thermally modified asphalt, diluted asphalt, emulsified asphalt, rubber asphalt below 7%.
Spreading error: ±2%
Asphalt tank capacity: 5000L
Number of nozzles and control method: 30-39 (one control and one)
Dimensions: 7080×2300×2650
| SER | ITEM | PARAMETER | UNIT | DATA | REMARK |
| 1 | WHOLE
VEHICLE | WHOLE MODEL |
| FCS5060GLQ3 |
|
| MANUFACTURE DATE |
| 2021 |
|
| OVERALL DEMENSION | MM | 6390×1980×2650 |
|
| CURB WEIGHT | KG | 3365 |
|
| MAX GRADABILITY WHEN FULL LOADING | DEG | 32° |
|
| MAX SPEED | KM/H | 95 |
|
| FRONT/REAR HANGING | MM | 1032/1968 |
|
| CLOSE/DEPARTURE ANGLE | DEG | 19/12 |
|
| LEAF SPRING | PCS | 8/9+5 |
|
| DRIVE WHEEL |
| 4*2 |
|
| 2 | CHASSIS | CHASSIS MODEL |
| EQ1060TJ20D3 |
| MANUFACTURER |
| DongFeng Motors Co.,Ltd. |
| MANUFACTURE DATE |
| 2021 |
| FRONT AXLE | KG | 2000 |
| REAR AXLE | KG | 3500 |
| POWER STEERING |
| Equipped |
| WHEELBASE |
| 3300 |
| TYRE SPECIFICATION |
| 7.00R16 |
| NO OF TYRES | PCS
| 6+1 spare tyre |
| 3 | ENGINE | ENGINE MODEL | YC4FA115-30 |
| MANUFACTER | Guangxi Yuchai Diesel Engine Co., Ltd |
| ENGINE HORSEPOWER | PS | 115 |
| DISPLACEMENT | ML | 2982 |
| EMISSION STANDARD | Euro II |
| ENGINE DETAILS MORE | 4 cylinders |
| Direct Injection |
| Watercooled |
| 4 | GEARBOX | NO OF GEARS | 5 forward gears and 1 reverse |
| RATIO | :5.057 :2.609 :1.565 :1.000 :0.764 R:4.575 |
| REAR RATIO | 5.875 |
| 5 | ASPHALT DISTRIBUTOR TANKER
| BRAND | FOCUS |
| THICKNESS | MM | 5 |
| VOLUME | L | 5000 |
| SPRAYING MEDIUM |
| emulsified asphalt |
| MATERIAL |
| Inner side:carbon steel outside:Stainless steel |
| ASPHALT PUMP |
| QGB270: 270L/min |
| HYDRAULIC SYSTEM |
| Manual reversing valve |
| HYDRAULIC PUMP |
| CBQ540-L |
| HYDRAULIC MOTOR |
| G5-16 |
| RADIATOR |
| Chinese brand:Risheng |
| CONTROL SYSTEM |
| manual |
| WIDTH OF SPRINKLING |
| 4M |
| NOZZLE |
| 15pcs |
| DIESEL BURNER |
| Italy G10 |
| 6 | CABIN | MODEL |
| DongFeng Single cabin |
| STEERING |
| Left hand drive |
| SEATS |
| 3 |
| COLOR |
| According to you |
| A/C |
| Equipped |
| OTHERS |
| With FM RADIO,MP3 interface,Spare tire stents and so on |
Note:1.All specification are our common design.Some of them can be changed according to your requirement.
2.The information contained in this message be privileged and confidential.
3.Any distribution of this message, in any form, is strictly prohibited |
Charactors of Alphat distributor/Speader truck:
1 Each of the sprayingnozzles can be controlled individually. The spraying width can be adjusted freely and with a sharpstart and stop.
2 The spray nozzle controlled via the pneumaticcylinderfrom the driving cab, safe and easy.
3 The asphalt pump adopted with proportional controlof high precision to realize the accurate control of spraying rate.
4 The design of fan-shaped sprayingnozzles can help to realize perfect spraying effect and good uniformity.
5 Asphalt pump is heated by engine cooling water. Low speed motor driven is energy saving and easy for starting up.
6 Thepipelinesclean system introducesdiesel oil to circulateand high-pressure air purgingsolution.
7 Simple operation for control system, it is easy to maintain and repair.
8 Equipped with RIELLO burner to heat up asphalt.
>>
