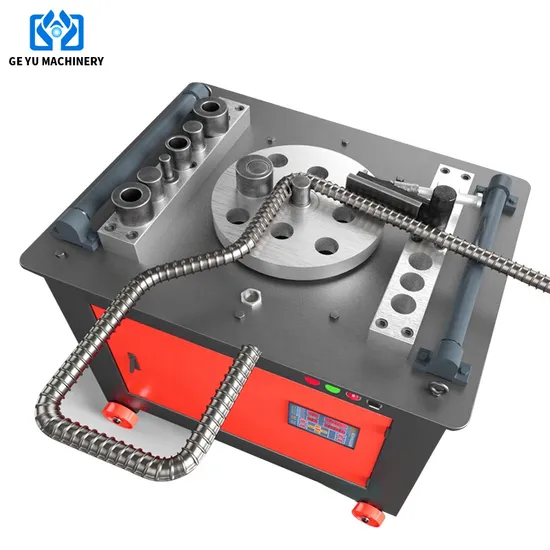

Steel Automatic Bar Bending Machine Rebar Stirrup Bender Bending-Machine Fabricado En China

Product Description

Reinforcing steel bar bending machine one of the processing machinery.
The working mechanism is a horizontal working disk rotating on the vertical axis, placing the reinforcing bar in the dotted line position, the supporting pin is fixed on the machine tool, the center pin and the bending pin are mounted on the working disk, When they bend the steel bar.
In order to bend a variety of diameter of the bar, there are several holes in the working plate to insert pressure bending pin, and it also can be replaced by a different diameter of the central pin.
Advantages and Details for the Machine:
Advanced design, Solid and reliable, Compact structure, Convenient operation, Safe and durable, Stable performance.
Special use thickening steel plate, High rigidity iron disc, High-power medium-speed national standard motor, Quality more stable.
Totally enclosed transmission, low noise, equipped with adjustable speed gear, and two kinds of speed, it is more convenient to use.
Specially added eccentric sleeve, ultra-high hardened attachments, adjustable damper, longer service life.
Application for the machine :
The box is fully enclosed design, to prevent the machine deformation in heavy loads and loading and unloading machine oil spills.
Intermediate shaft, intermediate shaft gear, input shaft, output shaft, intermediate shaft, work plate, stop block and pile head cover are all quenched, tempered and high-frequency heat treated.
High-quality alloy steel, 12mm thick box, heavy load work, long service life. Product overview

Product Model	Type-20	Type-24	Type-28	Type-32	Type-36
Maximum bending thread	φ6-16	φ6-20	φ6-25	φ6-28	φ6-32
Maximum bending round steel	φ6-18	φ6-25	φ6-28	φ6-32	φ6-36
Bending speed(r/min)	24	24	20	16-24	12-20
Motor Power(kw)	2.2	3	3	3	4
Voltage(v)	380V,50Hz,3Phase Alternating Current Or Customized					380(customizable)	380(customizable)	380(customizable)	380(customizable)
Overall Dimensions(cm)	80*50*85	84*55*90	91*69*85	70*70*90	90*70*90
Weight(kg)	90	130	180	200	240

Details features
Our customers visiting FAQ
Q1. How can we do if there are problems with the products? A: Our engineers will analyze the problem for you and find the best solution. If problems happened within the guaranteed time, we can replace the components for you free of charge. We have dealers
in some countries, for some technical problems which you can not solve by yourself.
Q2. What is the delivery time for your products?
A: Once we promise the delivery time, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Q3. Is there any guarantee for your products
A: Most of our products have one year guarantee(for the main parts).
Q4. How can you control your product quality?
A: Quality is always considered as the most important part during our manufacturing process. All of our products come under strict quality control system from raw material inspection, component inspecting,semi-finished product inspecting,performance test of finished products,to random inspection before delivery.

---
