Basic Info.
Pressure
High Temperature
Valve Structure
Direct-Acting Piston Structure
Power Supply
AC Solenoid Valve
Usage
Safety, Emptying, Drain, Temperature Control, Flow Control
Application
Industrial Usage, Water Industrial Usage
Working Medium
Air/Water/Oil/Gas
Ambient Temperature
0-65ºC
Working Temperature
0-130ºC
Body Material
Brass/SS316
Transport Package
Inner Box, Outer Carton...Pallet
Specification
CE, ROHS, SGS. ISO9001: 2000
Production Capacity
500000PCS/Month
Packaging & Delivery
Package Size
23.00cm * 21.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Quick Details Standard or Nonstandard: Standard Structure: Pilot Pressure: Low Pressure Power: Solenoid Material: Stainless Steel Temperature of Media: High Temperature Media: Water Port Size: 1/8"~2" Place of Origin: Zhejiang, China (Mainland) Model Number: ZS Brand Name: VPC material: stainless steel Packaging & Delivery
Packaging Details: | inner box carton pallet |
Delivery Detail: | 15~25 days |
Specifications1. normal close,normal open solenoid valve with flange
2. wide size:1/8"~2"
3. with lower working pressure,(10mm is special) Solenoid Valve -- ZS Series Stainless Steel (ZS SERIES)
Solenoid Valve (SS)

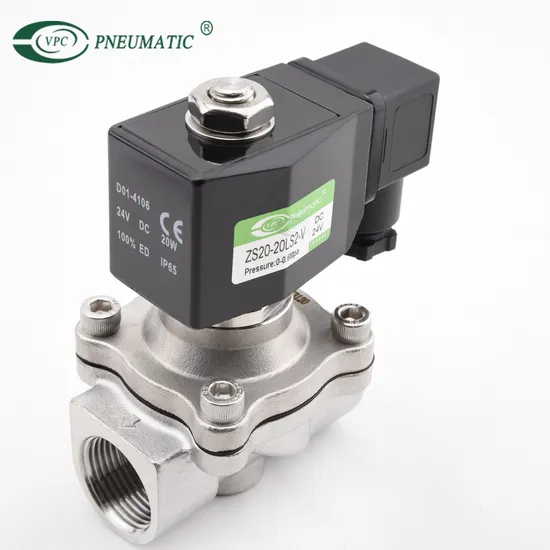

ZS Stainless Steel Series 2/2-way Zero Press. Differential Solenoid Valve. Normally Closed
Body Material: Stainless Steel
Orifice: 16mm~50mm
Pipe Connection: 3/8"~2" Flange Connection: Dn25~50
Fluid Media: Water\Hot Water \Air\Gas\Oil etc.
| New | Pipe | Orifice | Pressure | Seals | Body |
| Model code | Size | (mm) | (bar) | Material |
| ZS1DF02N4C16 | 3/8 | 16 | 0~10 | NBR | SS304 |
| ZS1DF02N4D16 | 1/2 | 16 | 0~10 | NBR | SS304 |
| ZS1DF02N4E20 | 3/4 | 20 | 0~10 | NBR | SS304 |
| ZS1DF02N4G25 | 1 | 25 | 0~10 | NBR | SS304 |
| ZS1DF02N4H35 | 1 1/4 | 32 | 0~10 | NBR | SS304 |
| ZS1DF02N4J40 | 1 1/2 | 40 | 0~10 | NBR | SS304 |
| ZS1DF02N4K50 | 2 | 50 | 0~10 | NBR | SS304 |
| ZS1DF02N4F25 | Flange Connection | 25 | 0~10 | NBR | SS304 |
| ZS1DF02N4F32 | 32 | 0~10 | NBR | SS304 |
| ZS1DF02N4F40 | 40 | 0~10 | NBR | SS304 |
| ZS1DF02N4F50 | 50 | 0~10 | NBR | SS304 |
>>
