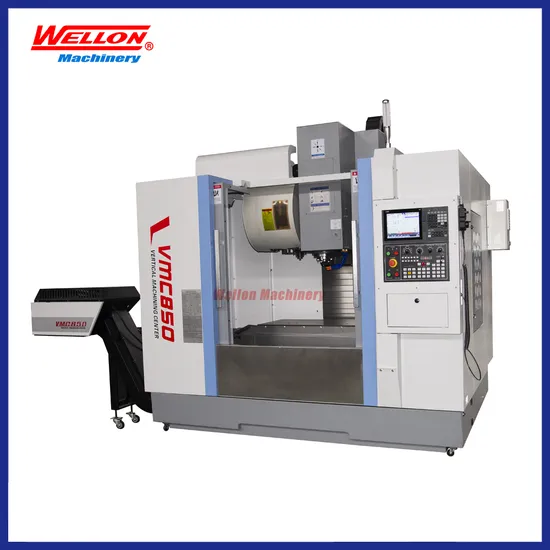

Automatic Fanuc Vmc850 Vertical Machining Center

Product Description

Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type both are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as optional;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Air gun+Water gun;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Item	Unit	VMC850
X axis travel	mm	800
Y axis travel	mm	500
Z axis travel	mm	500
Spindle nose to worktable	mm	150-650
Spindle center to column	mm	550
Leadscrew diameter X,Y,Z	mm	Φ40
Linear guideway width X,Y,Z	mm	35/35/35(Roller)
Worktable Length	mm	1000
Worktable width	mm	500
Max loading capacity	kg	500
T-slots(NO./width/pitch)		5*18*90
Spindle taper		BT40-150
Spindle speed	rpm	8000
Main motor power	kw	7.5/11
Fast moving speed (X/Y/Z)	m/min	36/36/30
Cutting speed	mm/min	1-10000
Feed motor torque	N/M	12/12/22
Feed motor power	kw	2.0/2.0/3.0
Capacity	pcs	Arm type 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Length	mm	3000
Width	mm	2300
Height	mm	2900
Weight	kg	4500

Standard accessories:
Fanuc 0i MF (5) control system
Belt type spindle from Taiwan 8000 rpm
24 tools Disc type ATC from Taiwan
3-Axis Roller linear guideway from Taiwan,
Ball leadscrew from Taiwan,
USB interface
Rigid tapping
Full closed cover
Automatic lubrication
Coolant system,
Work lamp,
Tri-color indication lamp,
Air gun+Water gun,
Heat exchanger in cabinet,

---
