Product Description
Product Description

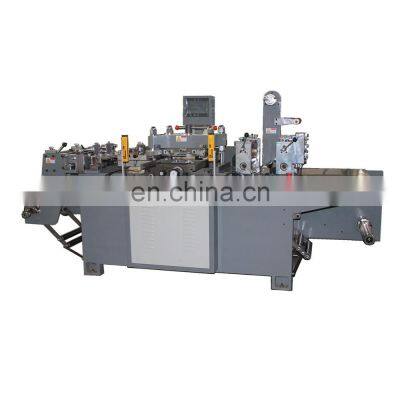

Automatic adhesive label die cutting machine
Die Cutting Machine:
SPECIFICATIONS FOR AUTOMATIC FAST SPEED ADHESIVE LABEL PUNCHING DIE CUTTING MACHINE
|
Model
| DP-320G
| DP-420G
|
Die Cutting speed
| 20-350 pcs/min
| 20-350 pcs/min
|
Max. unwinding diameter
| 450mm
| 450mm
|
Max. web width
| 320mm
| 420mm
|
Max. die cutting size
| 300x300mm
| 420x420mm
|
Precision
| ±0.10mm
| ±0.10mm
|
Power
| 3kw
| 4kw
|
Voltage
| 380v±10%
| 380v±10%
|
Machine weight
| 2000kg
| 2800kg
|
Dimension
| 2500x900x1400mm
| 2600x1050x1800mm
|
Main Features
1)Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging +sheet cutting/rewinding
2) Photo Cell if necessary
3)Sucking device during material feeding process
4) Waste discharge shaft
5)Sheet cutting station
6)Rewinding station
7)Safety curtain device
8) Optional function: Conveyor belt device for full-cut use
Functional characterisics:
This machine is of platen pressing structure ,computer servo system sheet drawing ,and the two edges and vertical sides of the materials are tracke loacted by the photoelectric eye ,Press trip automatic adjusted by screen ,regulation accuracy is +/_0.1002,make moulding -adjustment more convenient Feeding-waste draining -Slitting or rolling ,all of them are completed by the computer control by one turn.
Scope applicable :
The die cutting sheet self-adhesive trademark ,terylene film trademark ,and the radium anti-fake trakemake.This machine is the optimal assembled equipment for full cycle high-speed web-fed trademark printing machine,flexble edition printing machine,continuous screen print machine,gravure printing machine and anti-fake trademark swaging hammer ,and also the optimal machine model of a variety of trademark printing plants .It is also appliable to the Die cutting and formingof the electronic industry ,and tape goods production industry .
1,the product is deveoped aiming at the die cutting and forming of various materials such as PVC ,film Mylar ,copper foil ,aluminum foil ,foam ,ect .in the electronic industry .
2,pressure-sensitive materials ,protective film ,Electronic shielding material ,PVC ,Photographic film, Mylar ,copper foil ,Al foil ,foam ect and the LCD reflector plate ,Diffuser Sheet ,buffer plate ,Bright Enhancement Film ,silicone adhesive tape in photoelectric industry.
3,various insulating materials such as electronicc shield materials, PVC ,film ,Mylar copper foil .aluminum foil,foam ,ect.
4,various insulating materials such as self-adhesive material ,protective film ,electronic shield materials ,PVC,film ,Mylar ,copper foil,aluminum foil ,foam ,ect ,And LCD module parks:reflector ,doffuser ,gaskets ,silicon tape.
| Model | Max feeding
width(mm)
| Cutting
area(mm)
| Cutting
speed(T/M)
| Position
accuracy(mm)
| Power of
main engine(kw)
| Size(mm) | Voltage(V) |
| DP-320B | 320 | 320*300 | 30-170 | +/_0.10 | 2.2 | 2300*1250*1500 | 220 |
| DP-420B | 420 | 450*400 | 30-170 | +/_0.10 | 3 | 2400*1290*1610 | 380 |
| DP-350B | 350 | 320*300 | 30-170 | +/_0.10 | 2.2 | 2300*1250*1500 | 220 |
| DP-450B | 450 | 450*400 | 30-170 | +/_0.10 | 3 | 2400*1290*1610 | 380 |
| DP-320BIII | 320 | 320*300 | 20-170 | +/_0.10 | 0.2 | 2300*1250*1500 | 380 |
| DP-320II | 320 | 300*300 | 30-170 | +/_0.10 | 2.2 | 2300*1250*1500 | 220 |
| DP-420BII | 420 | 400*400 | 30-170 | +/_0.10 | 3 | 2550*1450*1650 | 380 |
| DP-520 | 520 | 500*500 | 20-120 | +/_0.10 | 4 | 2400*2025*1950 | 380 |
>>
