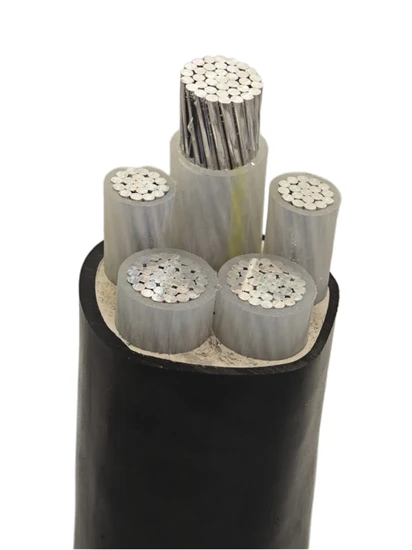

High Quality Aluminum ISO9001 Approved Insulated Electrical Sheathed Conductor XLPE China Factory PVC Cable

Product Description

Product Description Voltage: 0.6/1KV
Model: YJLV
Applications:
Power transmission Electrical systems in buildings Industrial control and automation Transportation Advantages:
The advantages of aluminum core power cable mainly include low cost, light weight, good corrosion resistance and oxidation resistance.
Conductor: Oxygen-free Aluminum
Insulation material: Crosslinked Polyethylene
Insulation color: Natural Color or to be customized
Filling material: Non-hygroscopic Material
Inner sheath: PVC
Outer sheath: PVC/PE
Sheath color: Black
Physical property:
Maximum operating temperature of conductor:
70ºC (PVC insulation), 90ºC (XLPE insulation)
Minimum operating temperature:
-5ºC (PVC or LSZH sheath), -20ºC (PE sheath)
Short-circuit temperature (no more than 5 seconds) :
140ºC-160ºC (PVC insulation), 250ºC (XLPE insulation) Product Parameters

3+1-Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable(0.6/1KV)
No. of Cores and Nominal Cross Section	Thickness of Insulation	Thickness of Sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of Conductor (20ºC)	Current Carrying Capacity(Ω/km)
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In Ground (A)
3×16+1×10	0.7/0.7	1.8	19.4	370	1.91/3.08	65	85
3×25+1×16	0.9/0.7	1.8	22.8	520	1.20/1.91	87	110
3×35+1×16	0.9/0.7	1.8	25.1	650	0.868/1.91	105	130
3×50+1×25	1.0/0.9	1.8	28.2	780	0.641/1.20	130	160
3×70+1×35	1.1/0.9	1.9	31.9	1050	0.443/0.868	165	195
3×95+1×50	1.1/1.0	2.1	35.7	1460	0.320/0.641	205	235
3×120+1×70	12./1.1	2.2	39.6	1820	0.253/0.443	240	265
3×150+1×70	1.4/1.1	2.3	43.6	2150	0.206/0.443	270	300
3×185+1×95	1.6/1.1	2.5	49.8	2725	0.164/0.320	315	340
3×240+1×120	1.7/1.2	2.7	55.3	3480	0.125/0.253	375	395
3×300+1×150	1.8/1.4	2.9	57.0	4230	0.100/0.206	435	445
3×400+1×185	2.0/1.7	3.1	70.0	5520	0.0778/0.164	510	510
4+1-Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable(0.6/1KV)
No. of Cores and Nominal Cross Section	Thickness of Insulation	Thickness of Sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of Conductor (20ºC)	Current Carrying Capacity(Ω/km)
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In Ground (A)
4×16+1×10	0.7/0.7	1.8	21.3	450	1.91/3.08	65	85
4×25+1×16	0.9/0.7	1.8	25.7	650	1.20/1.91	87	110
4×35+1×16	0.9/0.7	1.8	28.2	795	0.868/1.91	105	130
4×50+1×25	1.0/0.9	1.9	28.9	1020	0.641/1.20	130	160
4×70+1×35	1.1/0.9	2.0	32.2	1360	0.443/0.868	165	195
4×95+1×50	1.1/1.0	2.2	36.9	1870	0.320/0.641	205	235
4×120+1×70	12./1.1	2.3	40.8	2342	0.253/0.443	240	265
4×150+1×70	1.4/1.1	2.5	44.7	2778	0.206/0.443	270	300
4×185+1×95	1.6/1.1	2.7	50.7	3495	0.164/0.320	315	340
4×240+1×120	1.7/1.2	2.9	56.4	4416	0.125/0.253	375	395
4×300+1×150	1.8/1.4	3.1	64.0	5422	0.100/0.206	435	445
3+2-Core Aluminum Conductor XLPE Insulated PVC Sheathed Power Cable(0.6/1KV)
No. of Cores and Nominal Cross Section	Thickness of Insulation	Thickness of Sheath	Approx. Overall Diameter	Approx. Weight	Max. DC Resistance of Conductor (20ºC)	Current Carrying Capacity(Ω/km)
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air (A)	In Ground (A)
3×16+2×10	0.7/0.7	1.8	20.8	425	1.91/3.08	65	85
3×25+2×16	0.9/0.7	1.8	25.2	600	1.20/1.91	87	110
3×35+2×16	0.9/0.7	1.8	26.8	720	0.868/1.91	105	130
3×50+2×25	1.0/0.9	1.9	28.7	955	0.641/1.20	130	160
3×70+2×35	1.1/0.9	2.0	33.7	1230	0.443/0.868	165	195
3×95+2×50	1.1/1.0	2.2	38.3	1706	0.320/0.641	205	235
3×120+2×70	12./1.1	2.3	43.2	2180	0.253/0.443	240	265
3×150+2×70	1.4/1.1	2.4	46.5	2525	0.206/0.443	270	300
3×185+2×95	1.6/1.1	2.6	51.9	3195	0.164/0.320	315	340
3×240+2×120	1.7/1.2	2.8	58.0	4050	0.125/0.253	375	395
3×300+2×150	1.8/1.4	3.0	64.2	4983	0.100/0.206	435	445

Company Profile
Production Lines

Test equipment
Cases
Certifications
FAQ 1. Is your company a factory or a trading company? My company is a factory specializing in the production of cables, and the team members have more than 20 years of experience in the cable industry.
2. How does your company conduct quality control? We conduct strict control over the use of raw materials All details of the production process are closely watched by professional workers Quality Control Department monitors the whole process of production All products can only be delivered after the pass of the inspection by our own testing equipment 3. How can I get a sample?
Sample is free and customers only need to pay for its delivery.
4. What is your minimum order quantity?
The minimum order quantity varies by product type, please contact us for confirmation.
5. Can you customize it?
Yes. Please provide the specific requirements.
6. How long is your production cycle?
Usually 7-20 days, depending on order quantity and specifications.

---
