Swiss CNC Dual Spindle High-Speed Lathe with Linear Guide Rail

Product Description

Product Description

Introducing the Dual Spindle Swiss CNC Turning Bench Lathe Machine - Version 2024 -The B20 model stands as a pinnacle of modern engineering excellence, showcasing a sophisticated 5-axis sliding headstock lathe that boasts dual spindle prowess.
-With its groundbreaking design, both the masterful main spindle and the adept sub spindle are engineered for simultaneous machining, vastly boosting productivity and efficiency.
-Meticulously crafted for unparalleled precision, this machine is perfectly suited for processing profiles with a diameter reaching up to ≤ Φ 20mm, delivering outstanding quality and performance.
-This superior machine is designed for high-volume, diverse, and precision-driven manufacturing, excelling in the production of slender shaft components with significant length-to-diameter ratios, as well as complex and uniquely shaped parts.
Product Parameters

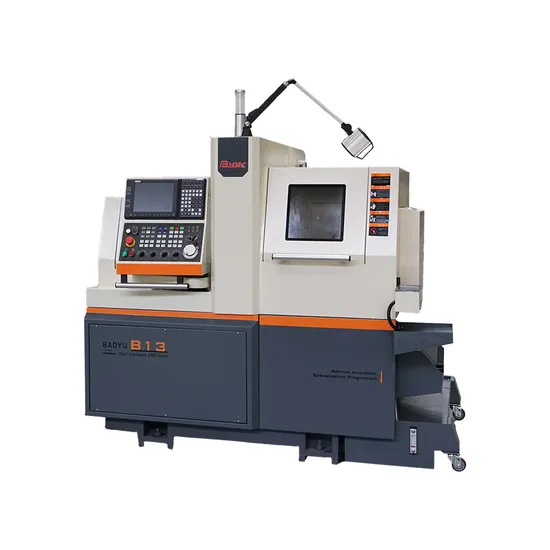

B13 Dual Spindle Swiss CNC Lathe Machine

Power	Rated voltage	Three-phase AC 380V
	Rated frequency	50HZ
	Total Input Power	10kW
CNC System	LNC	T6850
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Z Axis Pulse Equivalent	0.001mm
	Cutting Speed	1-4000mm/min
	X Axis Rapid Feed Speed	20000mm/min
	Y Axis Rapid Feed Speed	20000mm/min
	Z Axis Rapid Feed Speed	20000mm/min
Main Spindle	Maximum Bar Diameter	Φ13mm
	Main Spindle Through-hole Diameter	Φ14mm
	Main Spindle Center Height from Ground	1010mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	2kW
Sub Spindle	Maximum Clamping Diameter	Φ13mm
	Sub Spindle Speed	0-5000r/min
	Sub Spindle Motor Power	2kW
Travel	X1 Axis Travel	60mm(Diameter)
	Y1 Axis Travel	230mm
	Z1 Axis Travel	180mm
	X1 Axis Servo Motor Power	0.75kW
	Y1 Axis Servo Motor Power	1kW
	Z1 Axis Servo Motor Power	1kW
	Guide Rail Form	Linear Guide Rail

Travel	X2 Axis Travel	380mm(Diameter)
	Z2 Axis Travel	160mm
	X2 Axis Servo Motor Power	1kW
	Z2 Axis Servo Motor Power	1kW
Cooling System	Cutting Oil Motor Power	0.48kW
	Cooling Box Capacity	150L
Lubrication System	Motor Power	35W
	Capacity	2L
Main Spindle Tools	10*10Square Tool+∮16Hole Cutter	5pcs+4pcs
Power Head on the Side of the Main Spindle	Chuck ER11+ER16	2pcs+1pc
	Power	0.4kW
	Speed of Rotation	5000r/min
Sub Spindle Tools	∮16Hole Cutter	4pcs
Machine Size	Length * Width * Height	2030*1360*1960 MM
	Machine Weight	1700KG

B13 Configurations
Item	Specification	Origins
CNC System	LNC T6850	Taiwan LNC
Main Spindle		Baoyu BYSK
X1 Axis Motor	0.75KW Absolute Value Servo Motor	Inovance+ Lines
Y1 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
Z1 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
X2 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
Z2 Axis Motor	1kW Absolute Value Servo Motor	Inovance+ Lines
Screw Rod		HIWIN/PMI
Guide Rail		HIWIN/PMI

Optional Configurations
Servo rotating center frame	Z-axis travel after adding rotating center frame	100mm
	Power	0.75kW

Detailed Photos
Body Materials
CNC Control System
Operation System: Taiwan LNC T6850
Widely used across all industries, our product caters to a vast array of applications, ensuring versatility and adaptability.
High quality, practical, and remarkably stable, our product embodies these essential characteristics.
Inner Structure Details Introduce:
--1. By using a sub-spindle and back cutter table, simultaneous front and back machining becomes a seamless reality.
--2. Equipped with a 3-axis transverse power head, as well as transverse, front, and back rigid tapping capabilities. --3. With its main and sub-spindle adjustments, easily clamp small precision parts for optimal handling. --4. The B13 adopts absolute servo operation, saving time, effort, and labor while maintaining 24-hour constant power, ensuring high efficiency. --5. Features fixed and coupling guide bushings, ideal for high-precision processing of long workpieces with superior benefits.
With Configurations
The B13 CNC Lathe is configured with an oil film bar feeder, enhanced by a high-pressure oil pump and oil mist machine for improved performance and extended longevity of the lathe. Processed Product Display
We invite you to reach out to us and share your detailed design drawings, so we can tailor the perfect CNC machine solution to meet your needs.

Company Profile
Anhui Yuzhou Machine Tool Co.,ltd (BYSK Baoyu CNC ) is a comprehensive high-tech enterprise integarting R&D,Production,Sales &services of CNC system, CNC machine tool, automatic production line, Industrial robot, Internet of things and other products. BYSK CNC formerly known as Zhejiang Baoyu CNC Machine Tool Co.,ltd, and has a manufacturing base covering an area of 35,000 square meters in Taizhou,Zhejiang; It has a R&D center in Hangzhou, named as Hangzhou AOGE CNC Technology Co.,ltd. 2013 year, Anhui Yuzhou Machine Tool Co.,ltd bulit at Anhui Guangde city, covers 100,000 square meters.We company specializes in the production of CNC SWISS-type/Sliding Headstock Lathes,High-Precision Gang-type CNC Lathes,Turning&Milling Compund Centers, Vertical cnc lathe machines,Horizontal CNC lathes,Flat Bed CNC Machines,Slant-Bed CNC Lathes, Single-Spindle cnc lathes,Automatic Double-Spindle Lathes etc. Our Lathes all adopts absolute value servo and bus connection. It's over 10 on invention patens, utility models and design patens. It's products are widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories. Cost-effective products are ideal equipment for automatic batch production in all fields.We adopts modern management concepts, deepends internal managements, we continuously improved the manufacturing process and services of products, it has successfully passed ISO9001(2016 Quality Management System), ISO14001(2016 Environment Management System), Measurement Management System Certificate, and obtained Good Standardization Certificate, Otherwise, we products also have passed CE Certificate and other authoritative certifications.As an independent production enterprise, we always have the concept of improving the added value of individual products, Implemented the mission of "Provide high-quality products and best servises, and create the most hightest value for our customers", Carry out the business philosophy of " Service,Innovation,Specialization,Pragmatism", Finally realizes our vision of "Provide the most cost-effective machine tools for the world."
FAQ
1. Do you accept OEM/ODM?
Reply: Yes. OEM/ODM are welcomed.
2.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
4.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
7. What are the characteristics of the material of this product?
R: High quality gray cast iron with CE Certificate.
8. What are the unique functions and features of this product?
R: Comparable to European quality Swiss type cnc lathe machine, With high cost-effective, and obtained multiple domestic certifications in China, in addition, As an independent production enterprisewe have ourself technical research team.
9. What are the application areas or uses of this product?
R: Widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
11. Are there any second-hand products for sale?
R: No,sorry
12. What cnc system you use?
R: Our cnc operate system is the BYSK190, this is our company's own brand, and has always been popular in the market because of its easy operation and comprehensive functions, in addition, LNC system also be optional.
13. Are you factory ? and where is your factory located ? How can i have a visit there ?
R: Yes it is. Our company is located at Jianshe Road No.1, Economical District, Guangde,Xuancheng City,Anhui Pronvince. You are warmly welcomed to visit us.

---
