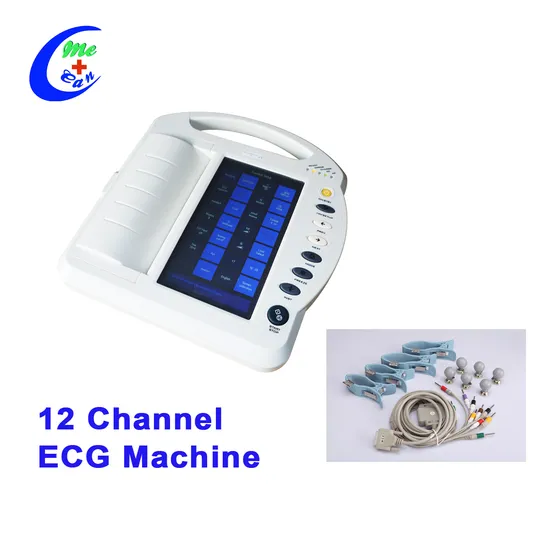

* 10inch touch-screen LCD,1024* 600 pixels, support input of patient name,gender, age and hosptial name by touchscreen keyboard.
* Manual/ Auto mode/ Arrhythmia anylysis, auto interpretation results.
| LCD display | Backlit high resolution 1024 x 600 10 inch touchscreen display 12 channel ECG waveform simultaneously,Time,Heart-rate.ect,support patient name,Age,Sex and Hospital name input |
| Safety | IEC, Class I, type CF |
| Leads | 12 STANDARD or CABRERA leads |
| Input circuit | Floating,Defibrillation protection |
| Patient Current Leakage | <10uA |
| Input circuit current | ≤0.1μA |
| CMRR | >100dB |
| Noise Level | ≤15μVp-p |
| Calibration Voltage | 1mV±2% |
| Print Channels | 12 channels, Rhythem lead selectable |
| Printing Output | 3+3 channel; 6 channel; 6+1 channel; 12 channel; 12+1 channel |
| Operation Mode | automatic,manual,single channel 60s compressed record,Rhythm analysis (R-R histogram and trend chart) |
| Thermal paper | 216mm*20M thermal paper in rolls |
| Prining speed | 5; 6.25; 10; 12.5; 25; 50mm/s ± 3% |
| Printing system | Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm (Horizontal),printing speed at 25mm/s |
| Recording sensitivity | 1.25,2.5,5,10,20,40mm/mV±2% |
