Automatic BRC Concrete Steel Reinforcing Wire Mesh Welding Machine for Construction

Product Description

Product Description
Reinforcing wire mesh welding machine

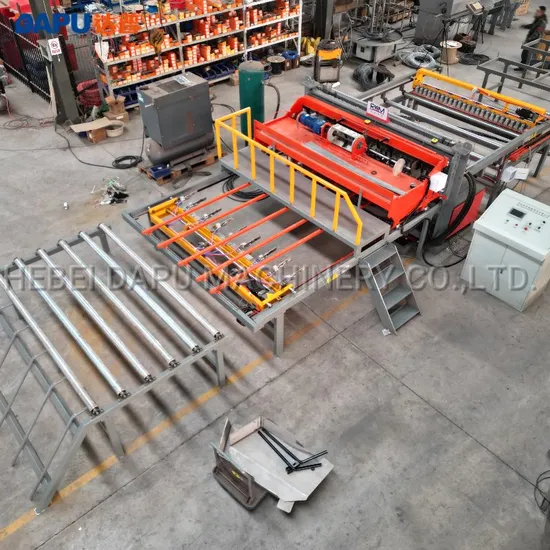

This is our full automatic ribs/deformed/reinforce wire fence mesh welding machine with automatic falling DP-GW-2500B, which adopts SMC bally air cylinders to control welding, the welding speed can be up to max.80-100 times/min. We can also supply other types of wire mesh welding machines 5-12mm and 3-8mm.
Our engineer can design a special specification machine according to your wire diameter, mesh hole size, and mesh width.

Model	DP-GW-2500B	DP-GW-3000B
Air cylinder type	SMC 90 single acting bally air cylinder
Wire diameter	4-12mm
Longitude wire space	100-300mm
Cross wire space	50-300mm
Mesh length	Max.12m
Mesh width	Max.2500mm	Max.3000mm
Welding electrode	Max.24pcs	Max.30pcs
Welding transformer	150kva*12pcs	150kva*15pcs
Welding speed	Max.80-100 times/min
Weight	10T	12T
Main machine size	12.13*5.4*2.1m	12.13*6*2.1m

Wire straightening and cutting machine is to make pre-straighten and pre-cut cross wire use. So, the finished welded panel can be very flat and meet market demand.

Model	GT4-12	GT6-14
Type	Mechanical type	CNC type
Wire diameter	4-12mm round bar, 4-10 rebar	5-12 (ribbed bar 12mm) (round bar 14mm)
Cutting length	500mm-12000mm	500-12000mm
Speed	45m/min	52m/min
Straight motor	11kw	7.5kw
Cut motor	4kw	4kw
Cut error	±1	±1
Machine size	2.3*0.8*1.1m	2.1*0.8*1.1m
Weight	1000kg	1200kg

Jiake Wire Mesh Machinery. It's the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.

---
