Rxgj-6 Rotary Bar Ice Cream Machine

Product Description

Detailed Photos

Product Description

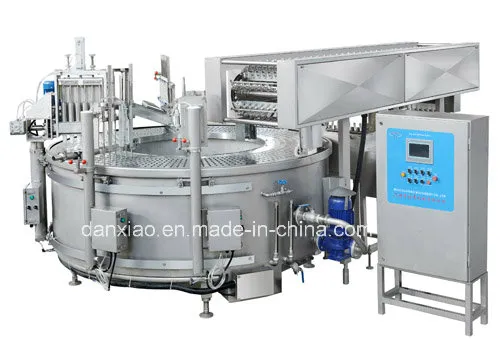

Rotary series color ice cream machine is wholly made with stainless steel, it was jointed by double annular tanks, has a compact structure and nice appearance, and with characteristics of taking little space and easy cleaning.
The structure of round-tank type always keeps moulds inside brine tank, which will help to save ice cream raw materials and decrease energy using.
Machine adopts compressed air drive which processes smooth and with the function of multi-point failure detection and protection.
PLC control and human-machine interface operation makes the machine to achieve high efficiency running and suitable for large-scale and various ice cream production, it's the latest generation of energy conservation and environmental protection products.
This series we have 4 items can be choice: 3500PCS/h 7200PCS/h 14000PCS/h 18000PCS/h
Product Parameters

No.	Parameter		Unit	Value
1	Maximum capacity		Piece/h	7200
2	Number of moulds each row		Piece	6
3	Mould Lines		Piece	140
4	Power supply		Phase/V/Hz	3/380/50
5	Power (excluding brine pump)	Water pump motor for demould	Kw	1.5
		Milk pump motor	Kw	0.75
		Vacuum pump motor	Kw	2.2
		Heating	Kw	10
6	Refrigerant	Name	--	Calcium chlorde
		Flow rate	M 3 /h	120
7	Pipeline	Brine water pipeline	mm	Φ90
		Air pipeline	Inch	1/2
8	Cooling capacity		KW	About 90
9	Dimension(L×W×H)		mm	4500×2700×1820
10	Weight		Ton	5

Wuxi Danxiao Machinery Co., Ltd. was established in 2000 and is located in Wuxi, the core city of the Yangtze River Delta Economic Circle. It is an enterprise integrating development, design, research, production, and sales of various ice cream production lines. The company has a full range of ice cream processing equipment. Including ice cream mixing plant ,freezer,extrusion line, filling machine , stick ice cream machine , sandwiche packing machine, etc
After more than 20 years of development, Danxiao has the technology and manufacturing experience in line with international standards. Its business covers nearly 50 countries and regions in Europe, America, Oceania,the Middle East etc. The machine is recognized and praised by Unilever, LADY M, Baxi, Mengniu and other brands. It has successively obtained high-tech enterprises, ISO9001 quality management system certification, CE certification, famous enterprises in Jiangsu Province, and a number of patents .
We always adhere to the corporate spirit of honesty and pragmatism, rigorous focus, pioneering and innovative, and the pursuit of excellence, and are committed to providing customers with more efficient and energy-saving complete ice cream equipment solutions!

---
